BQ771817DPJT - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ771817DPJT - Li-Ion, Over Voltage Protector, 4.275V, 1s Delay, CMOS Active High, 5 Cell, 3V to 25V, WSON-8

Download BQ771817DPJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

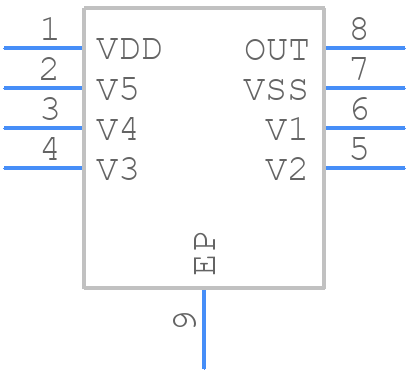

BQ771817DPJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ771817DPJT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DPJ0008A
click to zoom
3D Models
BQ771817DPJT - Texas Instruments - 3D model - Small Outline No-lead - DPJ0008A
click to zoom

BQ771817DPJT Details

  • Manufacturer Part Number:

    BQ771817DPJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OVER VOLTAGE DETECTION VOLTAGE IS 4.275V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    25 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.17,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.275V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ771817DPJT Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and a separate layer for the analog and digital signals. A good layout should also minimize the distance between the IC and the battery, and ensure that the sense resistors are close to the IC.
  • Calibration involves setting the gain and offset for the voltage and current sense amplifiers. TI provides a calibration procedure in the datasheet, which involves measuring the voltage and current sense resistors, and adjusting the gain and offset registers accordingly.
  • The BQ771817DPJT can support up to 17 series-connected batteries. However, the maximum number of batteries depends on the specific application and the voltage rating of the batteries.
  • The BQ771817DPJT uses a passive balancing method, where the IC controls the balancing FETs to dissipate excess energy from the higher-voltage cells. The balancing algorithm is based on a voltage-based approach, where the IC monitors the voltage of each cell and adjusts the balancing current accordingly.
  • The BQ771817DPJT uses an I2C interface for communication. The IC acts as a slave device, and the host controller can read and write data to the IC using standard I2C commands. TI provides a detailed description of the I2C protocol and register map in the datasheet.
