Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate battery monitoring and charging, it's crucial to follow the recommended calibration procedure outlined in the datasheet. Additionally, consider using a high-precision voltage reference and ensuring that the battery voltage sense lines are properly filtered and shielded.
The maximum charging current for the BQ771825DPJR is 2.5A, but it's essential to consider the thermal limitations and ensure that the device is properly heat-sinked to prevent overheating.
Yes, the BQ771825DPJR supports multiple battery chemistries, including Li-ion, Li-polymer, and NiMH. However, it's essential to configure the device correctly for the specific battery chemistry used, and to ensure that the charging profile is optimized for the chosen chemistry.
The BQ771825DPJR has built-in overcharge protection, but it's essential to configure the device correctly to enable this feature. This typically involves setting the overcharge detection threshold and timeout period using the device's registers.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ771825DPJR Overview

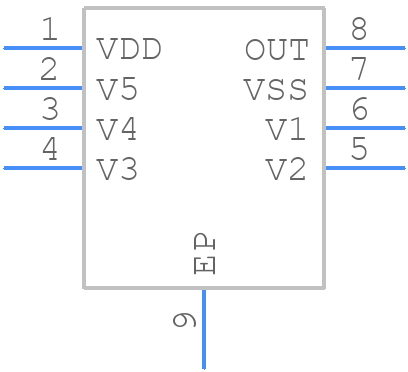

Use the download button to access the BQ771825DPJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ771,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
