Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The BQ7791514PWR supports various battery chemistries, including Li-ion, Li-polymer, and Lead-Acid. To configure the device for a specific chemistry, refer to the datasheet's 'Battery Chemistry Configuration' section, which provides detailed information on setting the correct voltage and temperature thresholds.
The BQ7791514PWR can handle charging currents up to 4A, but it's essential to ensure the device is properly cooled and the PCB is designed to handle the increased current. Refer to the datasheet's 'Thermal Considerations' section for more information.
The BQ7791514PWR has built-in overcharge protection, which can be configured using the device's registers. Refer to the datasheet's 'Overcharge Protection' section for detailed information on setting the correct voltage and temperature thresholds.
Yes, the BQ7791514PWR can be used with a fuel gauge, such as the Texas Instruments BQ27441. The fuel gauge provides accurate state-of-charge information, while the BQ7791514PWR manages the charging and discharging of the battery.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7791514PWR Overview

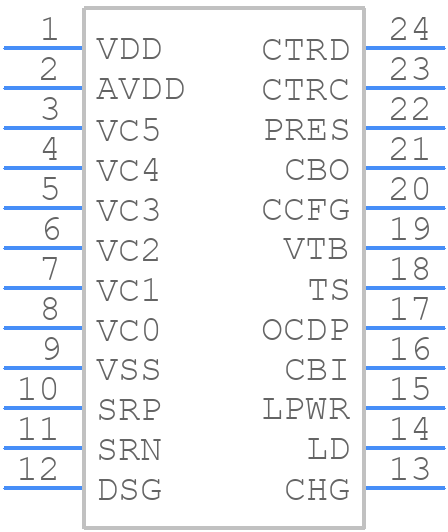

Use the download button to access the BQ7791514PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ779,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
