A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the power source, and the input and output capacitors should be placed close to the device. A thermal pad should be connected to a solid ground plane to dissipate heat.
Use the TI Power Architect tool to configure the device for your specific application. The tool allows you to select the input voltage, output voltage, and other parameters to generate a configuration file that can be loaded into the device.
A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. The capacitor should be placed as close to the VIN pin as possible and should have a low ESR to minimize voltage ripple.
Use the device's built-in diagnostic features, such as the fault pin and the I2C interface, to troubleshoot issues. Check the device's temperature, input voltage, and output voltage to identify the root cause of the issue. Consult the datasheet and application notes for troubleshooting guidelines.
Yes, the BQ77PL900DLR is designed for high-reliability and safety-critical applications. It has built-in features such as overvoltage protection, undervoltage protection, and thermal shutdown to ensure safe operation. However, it is essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ77PL900DLR Overview

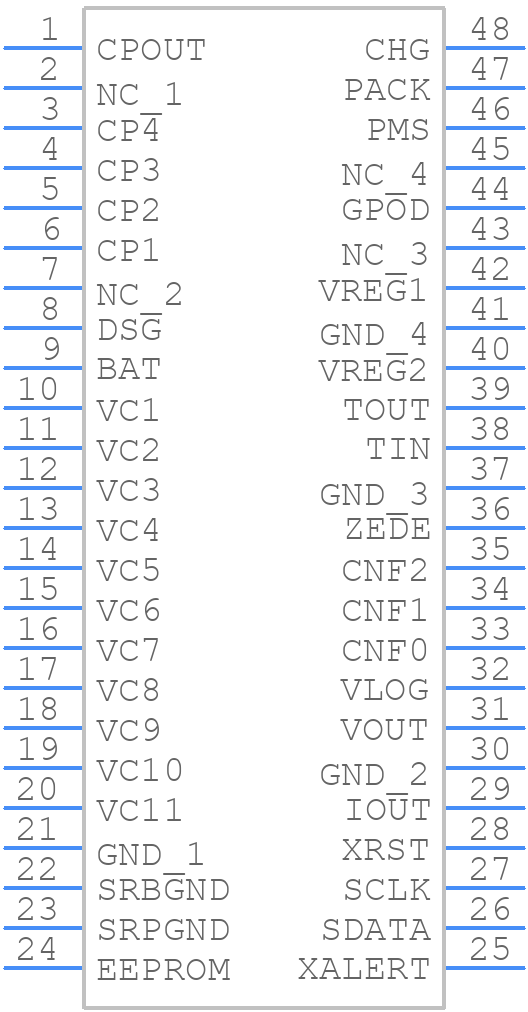

Use the download button to access the BQ77PL900DLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ77P,
or try a keyword search, such as Power Management Circuits
