BQ78350DBT - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ78350DBT - LiFePO4, Li-Ion/-Pol Battery Charge Controller, Fuel Gauge, 2.4-2.6V supply, SMBus, TSSOP-30

Download BQ78350DBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

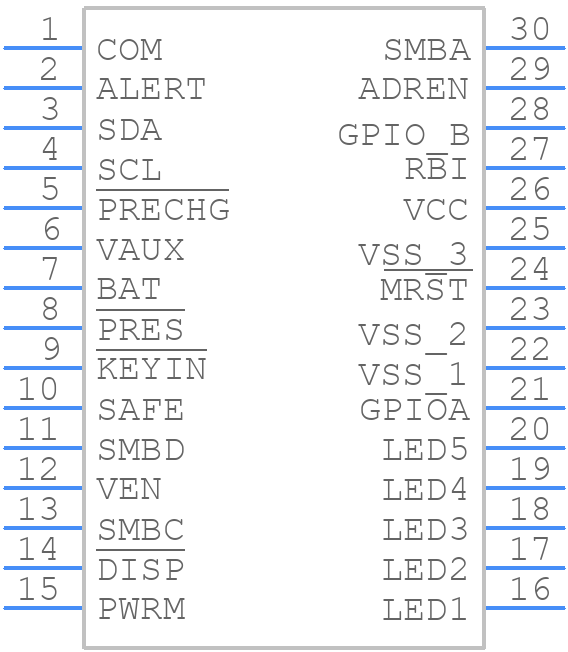

BQ78350DBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ78350DBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom
3D Models
BQ78350DBT - Texas Instruments - 3D model - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom

BQ78350DBT Details

  • Manufacturer Part Number:

    BQ78350DBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ78350DBT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Use the bq78350DBT's programmable charging profile feature to customize the charging curve for your specific battery chemistry. Consult the datasheet and application notes for guidance on setting the charging parameters.
  • The maximum charging current is 3A, but it's recommended to limit it to 2A for optimal performance and thermal management. Higher currents may require additional thermal design considerations.
  • Yes, the bq78350DBT supports charging multiple batteries in parallel. However, ensure that the total charging current does not exceed the IC's maximum rating, and that the batteries are properly balanced and monitored.
  • The bq78350DBT has built-in overcharge protection. Set the OVP (Over-Voltage Protection) threshold using the OVP pin, and the IC will automatically terminate charging when the battery voltage reaches the set point.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ78350DBT Overview

Use the download button to access the BQ78350DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ783, or try a keyword search, such as Power Management Circuits
