BQ78350DBTR-R1 - Texas Instruments

Description: CEDV Li-Ion Gas Gauge and Battery Management Controller

Download BQ78350DBTR-R1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

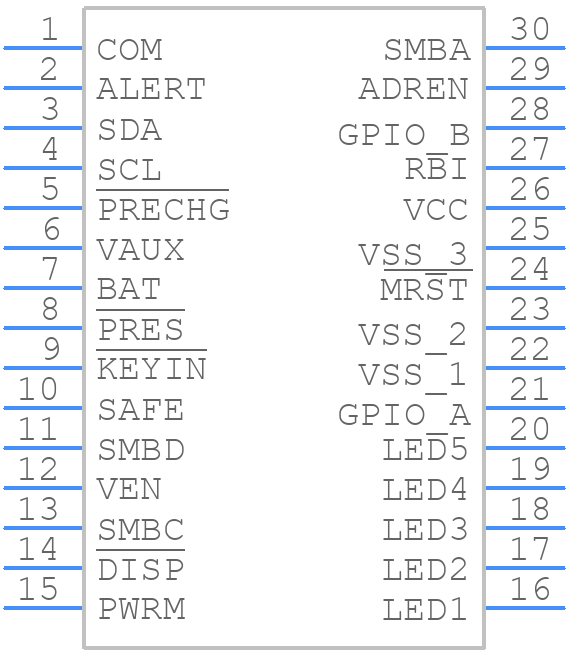

BQ78350DBTR-R1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ78350DBTR-R1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom
3D Models
BQ78350DBTR-R1 - Texas Instruments - 3D model - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom

BQ78350DBTR-R1 Details

  • Manufacturer Part Number:

    BQ78350DBTR-R1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ78350DBTR-R1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat.
  • Use the TI-provided software tools, such as the Battery Management Studio, to configure the device for your specific battery chemistry. Consult the user guide for the software tool for more information.
  • The device has a thermal pad on the bottom, so ensure good thermal contact with the PCB. Use thermal vias and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • Use the built-in diagnostic features, such as the fault registers and the debug interface, to identify the issue. Consult the datasheet and application notes for troubleshooting guidelines.
  • While the device is optimized for certain battery chemistries, it can be used with other chemistries with proper configuration and calibration. Consult with TI support or a qualified engineer for guidance.
