BQ78PL114RGZT - Texas Instruments

Description: Master Gateway Battery Management Controller

Download BQ78PL114RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

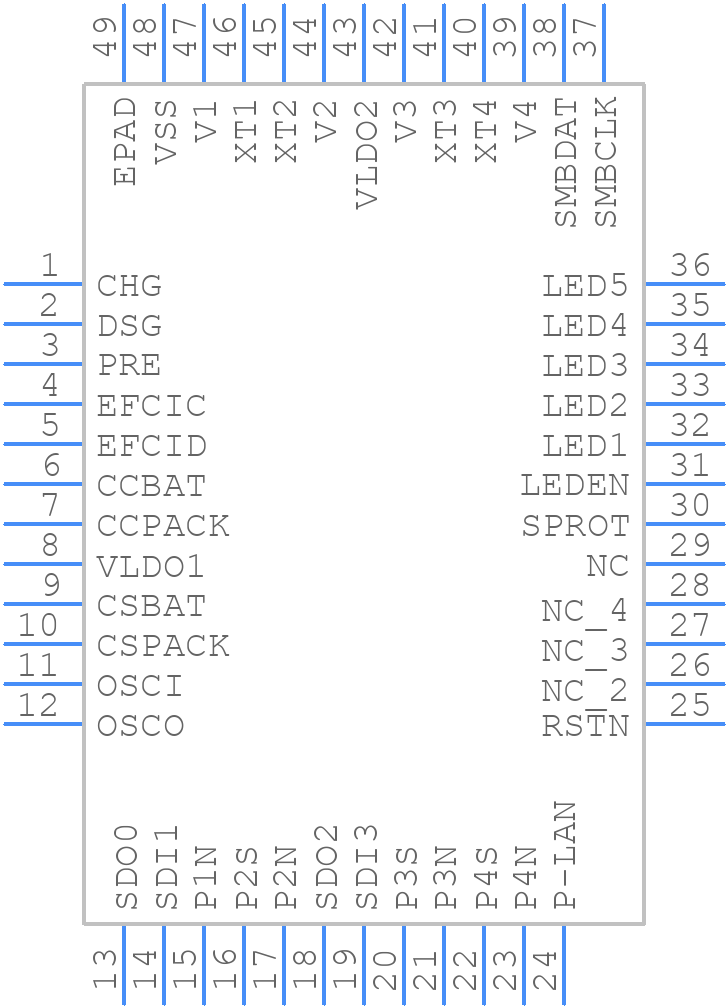

BQ78PL114RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ78PL114RGZT - Texas Instruments PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
BQ78PL114RGZT - Texas Instruments - 3D model - Other - QFN50P700X700X100-49N
click to zoom

BQ78PL114RGZT Details

  • Manufacturer Part Number:

    BQ78PL114RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

BQ78PL114RGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency switching regulators, such as keeping the power stage components close together, using a solid ground plane, and minimizing trace lengths and widths.
  • The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also recommended to consult the inductor manufacturer's datasheet and to consider factors such as inductor core material, size, and saturation current.
  • The maximum ambient temperature for the BQ78PL114RGZT is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for more information on thermal derating.
  • The BQ78PL114RGZT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values. Consult the datasheet for more information on OVP implementation.
  • The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the input voltage and have a low ESR to minimize voltage ripple and ensure stable operation.
