FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
4.6 mA
Supply Voltage-Max (Vsup):
33 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+2.59V
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
BQ79606PHPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the BQ79606PHPRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The BQ79606PHPRQ1 is designed to support various battery chemistries, including lithium-ion, lead-acid, and nickel-based batteries. Configuration can be done through the device's registers, which allow adjustment of parameters such as voltage and current limits, charge/discharge profiles, and fault detection thresholds.
The BQ79606PHPRQ1 is designed to monitor up to 16 series-connected cells, making it suitable for a wide range of battery pack configurations.
The BQ79606PHPRQ1 includes built-in cell balancing and mismatch detection capabilities, which help to ensure that individual cells are charged and discharged evenly, preventing overcharge or over-discharge conditions that can lead to reduced battery life or safety issues.
The BQ79606PHPRQ1 uses a standard SPI (Serial Peripheral Interface) protocol for data exchange with the microcontroller, allowing for easy integration into existing system designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ79606PHPRQ1 Overview

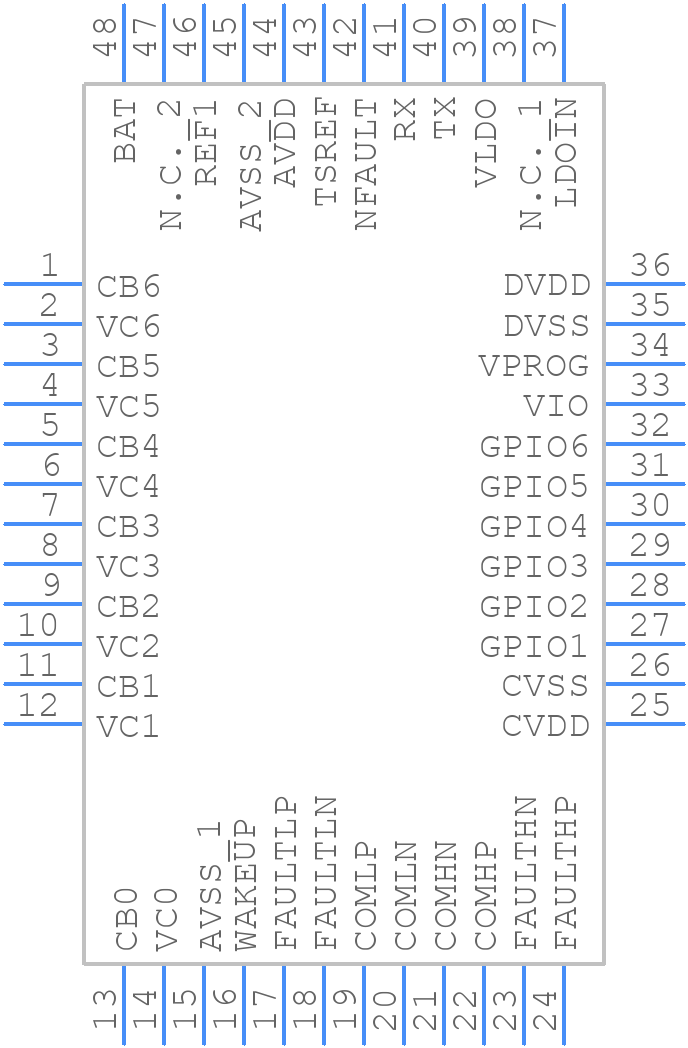

Use the download button to access the BQ79606PHPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ796,
or try a keyword search, such as Power Management Circuits
