Infineon recommends a PCB layout with a large copper area connected to the drain pin (pin 3) to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a thermal pad.
To ensure proper biasing, the gate-source voltage (Vgs) should be between 4.5V and 10V, and the drain-source voltage (Vds) should be between 10V and 30V. Additionally, the gate current (Ig) should be limited to 10mA to prevent damage to the device.
The maximum allowed power dissipation of the BSC0911ND is 30W. However, this value can be derated based on the ambient temperature and the thermal resistance of the device. Refer to the datasheet for more information on thermal derating.
Yes, the BSC0911ND is suitable for high-frequency switching applications up to 1 MHz. However, the device's switching characteristics, such as rise and fall times, should be considered to ensure optimal performance.
To protect the BSC0911ND from ESD, handle the device with an anti-static wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BSC0911ND Overview

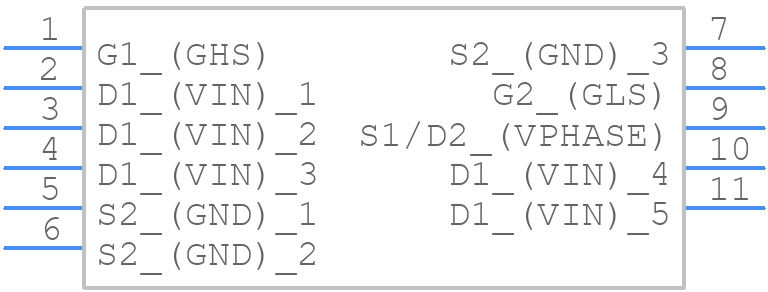

Use the download button to access the BSC0911ND schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSC09,
or try a keyword search, such as Small Signal Field-Effect Transistors
