BSC112N06LDATMA1 - Infineon

Description: MOSFET TRENCH 40<-<100V

Download BSC112N06LDATMA1 Model

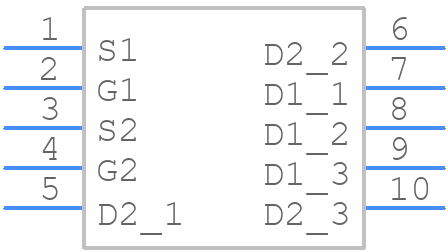

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSC112N06LDATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-4_1
click to zoom
3D Models
BSC112N06LDATMA1 - Infineon  - 3D model - Other - PG-TDSON-8-4_1
click to zoom

BSC112N06LDATMA1 Details

  • Manufacturer Part Number:

    BSC112N06LDATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    80 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    57 A

  • Drain-source On Resistance-Max:

    0.0112 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    56 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    65 W

  • Pulsed Drain Current-Max (IDM):

    228 A

  • Reference Standard:

    IEC-61249-2-21

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSC112N06LDATMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and heat sink design to ensure optimal thermal performance.
  • The gate resistor value depends on the specific application requirements, such as switching frequency, voltage, and current. A general guideline is to use a value between 1 ohm and 10 ohm. Consult Infineon's application notes and simulation tools to determine the optimal value for your design.
  • The maximum allowed voltage during startup or shutdown is specified in the datasheet as VCC(max) = 30V. However, it's recommended to limit the voltage to 25V to ensure reliable operation and prevent damage to the device.
  • The BSC112N06LDATMA1 is rated for operation up to 150°C (TJ). However, the device's performance and reliability may degrade at high temperatures. Consult Infineon's thermal modeling tools and application notes to determine the device's suitability for your specific high-temperature application.
  • To ensure EMC, follow Infineon's guidelines for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke and a snubber circuit to reduce electromagnetic interference (EMI). Consult Infineon's application notes and EMC simulation tools for more information.
