BSD223PH6327XTSA1 - Infineon

Description: MOSFET P-Ch DPAK-2

Download BSD223PH6327XTSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

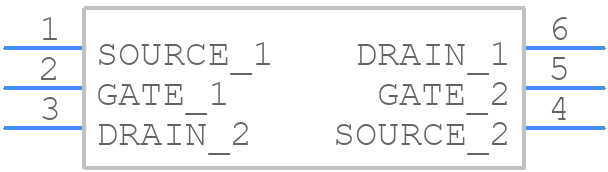

BSD223PH6327XTSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BSD223PH6327XTSA1 - Infineon PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - BSD223PH6327XTSA1+
click to zoom
3D Models
BSD223PH6327XTSA1 - Infineon - 3D model - SOT23 (6-Pin) - BSD223PH6327XTSA1+
click to zoom

BSD223PH6327XTSA1 Details

  • Manufacturer Part Number:

    BSD223PH6327XTSA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.21.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Additional Feature:

    AVALANCHE RATED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.39 A

  • Drain-source On Resistance-Max:

    1.2 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    22 pF

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON
