BSL316CH6327XTSA1 - Infineon

Description: MOSFET SMALL SIGNAL+P/N-CH OptiMOS 2 + OptiMOS-P 2 Small Signal Transistor

Download BSL316CH6327XTSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

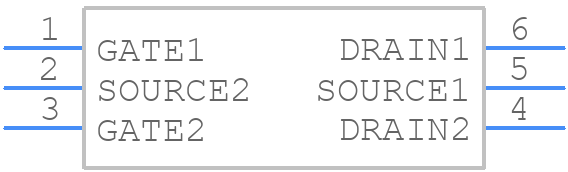

Symbol
BSL316CH6327XTSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BSL316CH6327XTSA1 - Infineon PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOP-6 (1)+
click to zoom
3D Models
BSL316CH6327XTSA1 - Infineon - 3D model - SOT23 (6-Pin) - TSOP-6 (1)+
click to zoom

BSL316CH6327XTSA1 Details

  • Manufacturer Part Number:

    BSL316CH6327XTSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    AVALANCHE RATED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    1.4 A

  • Drain-source On Resistance-Max:

    0.16 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7 pF

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

BSL316CH6327XTSA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to ensure good thermal conductivity. A minimum of 5 thermal vias with a diameter of 0.3 mm is recommended.
  • Infineon recommends using a soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds. The device should be soldered using a no-clean flux and a solder alloy with a melting point above 217°C.
  • The recommended operating voltage range for BSL316CH6327XTSA1 is 12 V to 14 V. Operating the device outside of this range may affect its performance and reliability.
  • Infineon recommends using a voltage supervisor or a power-on reset circuit to protect the device from overvoltage and undervoltage conditions. A voltage clamp or a transient voltage suppressor can also be used to protect the device from voltage spikes.
  • The maximum allowed current for BSL316CH6327XTSA1 is 30 A. Exceeding this current may cause the device to overheat or fail.
