BSM10GD120DN2 - Infineon

Description: IGBT MODULE, 1.2KV, 15A, ECONOPACK2; Transistor Polarity:N Channel; DC Collector Current:15A; Collector Emitter Saturation Voltage Vce(on):2.7V; Power Dissipation Pd:80W; Collector Emitter Voltage V(br)ceo:1.2kV; No. of Pins:17Pins RoHS Compliant: Yes

Download BSM10GD120DN2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

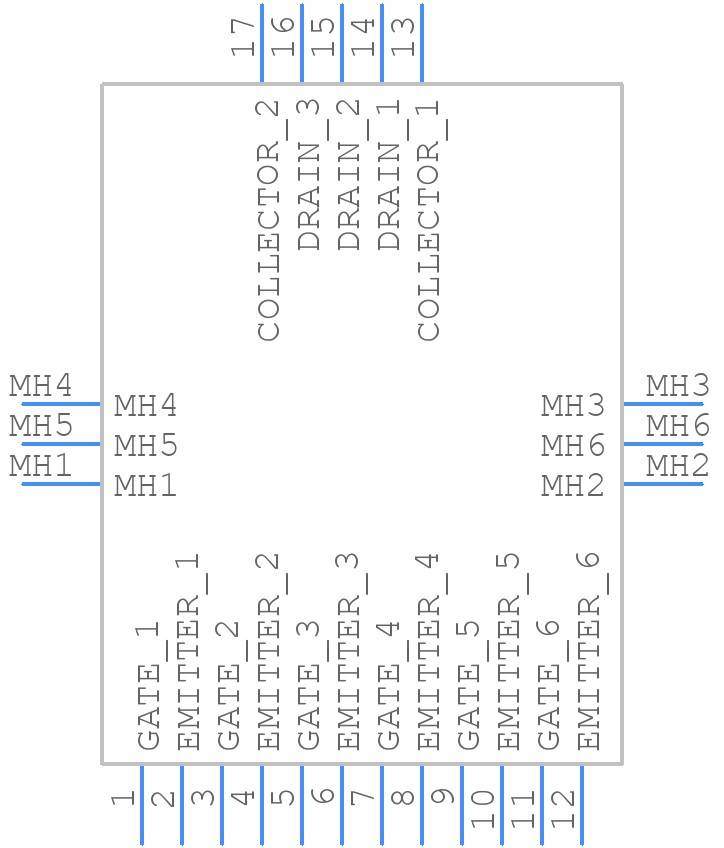

BSM10GD120DN2 - Infineon - PCB symbol
click to zoom
PCB Footprints

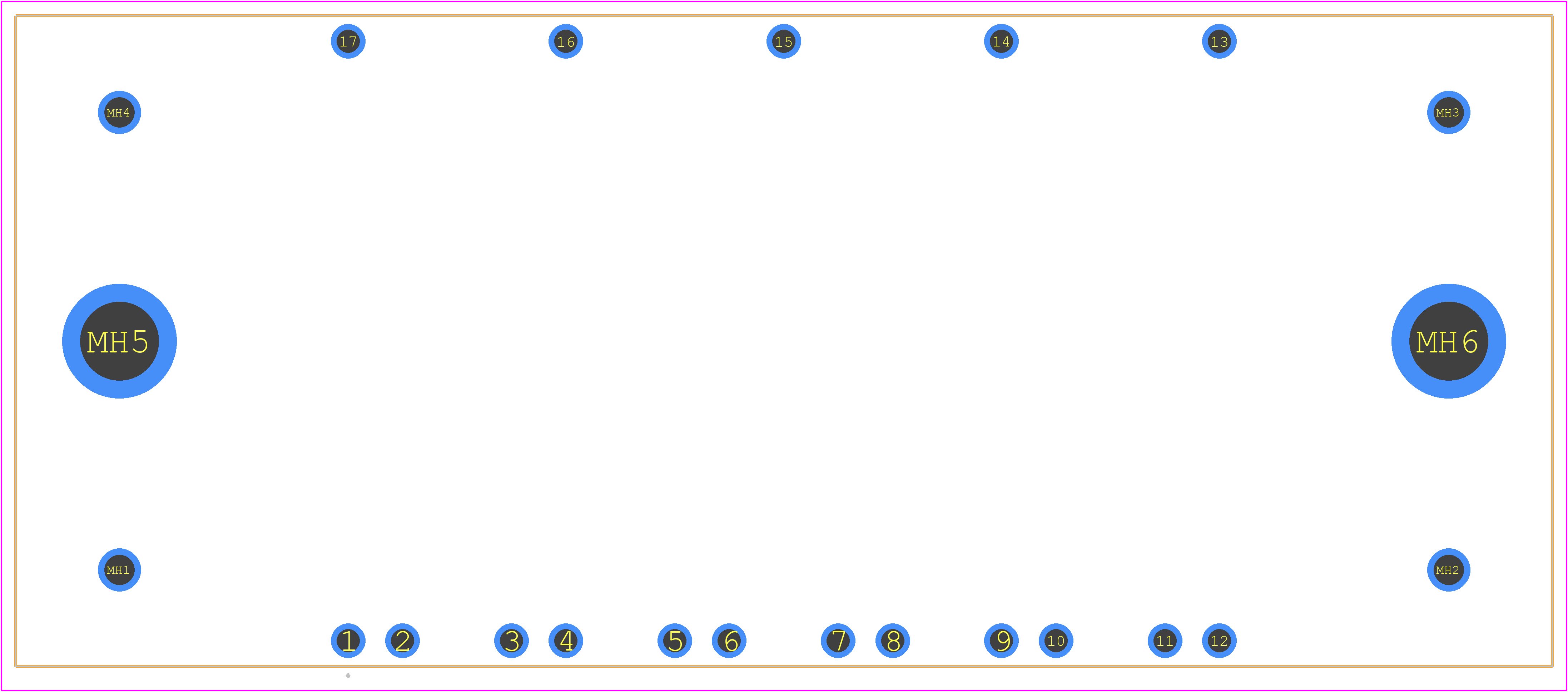

BSM10GD120DN2 - Infineon PCB footprint - Other - Other - BSM10GD120DN2-1
click to zoom
3D Models
BSM10GD120DN2 - Infineon - 3D model - Other - BSM10GD120DN2-1
click to zoom

BSM10GD120DN2 Details

  • Manufacturer Part Number:

    BSM10GD120DN2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    17

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X17

  • Number of Elements:

    6

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    80 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    460 ns

  • Turn-on Time-Nom (ton):

    105 ns

  • VCEsat-Max:

    3.2 V

BSM10GD120DN2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BSM10GD120DN2 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to ensure proper heat sinking and cooling mechanisms are in place.
  • The recommended gate drive voltage for the BSM10GD120DN2 is between 10V to 15V, with a maximum voltage of 20V.
  • To protect the BSM10GD120DN2 from overvoltage and overcurrent, it's recommended to use a suitable voltage regulator and overcurrent protection circuitry, such as a fuse or a current limiter.
  • The maximum allowable power dissipation for the BSM10GD120DN2 is 150W, but this can be affected by various factors such as ambient temperature, heat sinking, and cooling mechanisms.
