BSM15GP120 - Infineon

Description: IGBT Modules 1200V 15A PIM

Download BSM15GP120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

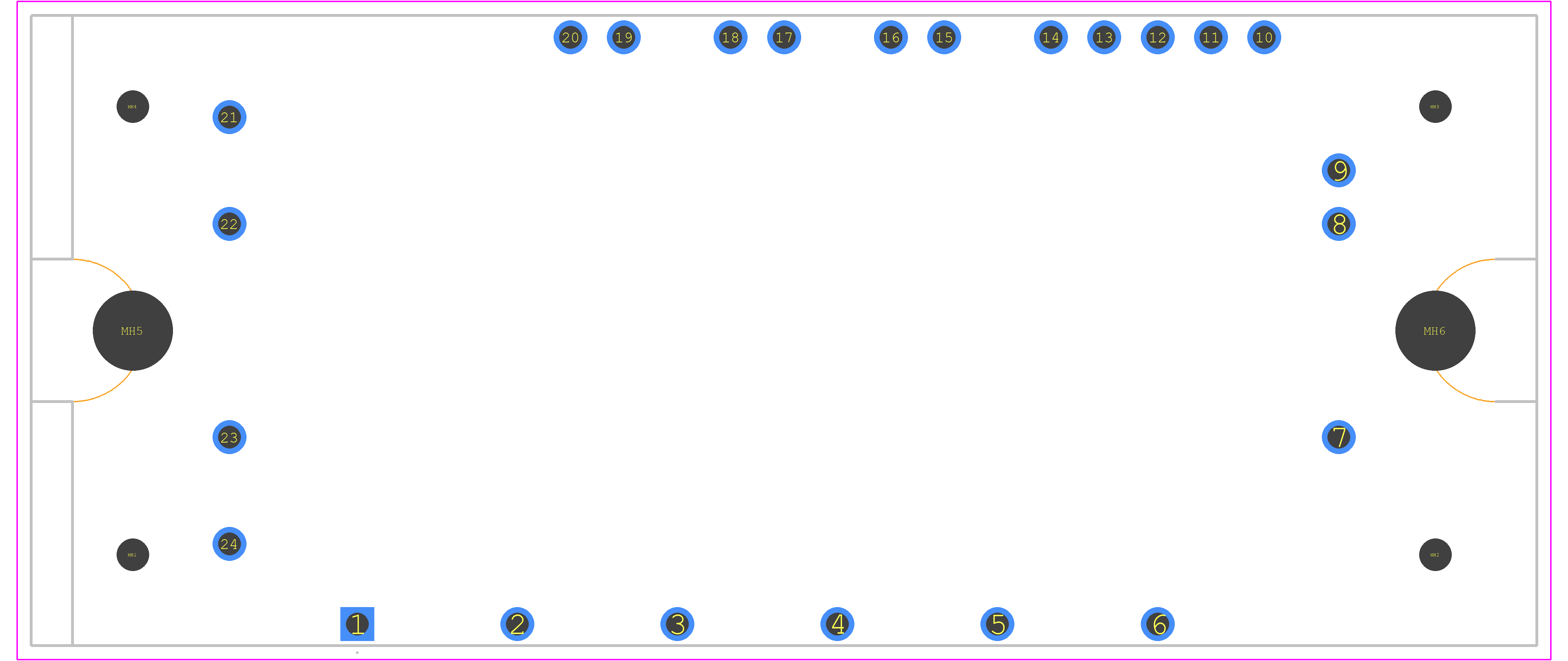

BSM15GP120 - Infineon PCB footprint - Other - Other - BSM15GP120-7
click to zoom

BSM15GP120 Details

  • Manufacturer Part Number:

    BSM15GP120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    35 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    7

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    180 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    465 ns

  • Turn-on Time-Nom (ton):

    121 ns

  • VCEsat-Max:

    2.55 V

BSM15GP120 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the BSM15GP120 is 20 kHz, but it can be used up to 50 kHz with some limitations.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using a thermal interface material, and maintaining a maximum junction temperature of 150°C.
  • The recommended gate resistor value is between 10 ohms and 20 ohms, depending on the specific application and switching frequency.
  • Yes, the BSM15GP120 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management between the modules.
  • The maximum allowed voltage imbalance between the DC links is ±10% of the nominal DC voltage to ensure proper operation and prevent damage to the module.
