The maximum operating temperature range for the BSM25GD120DLCE3224 is -40°C to 150°C, as specified in the datasheet. However, it's essential to note that the maximum junction temperature (Tj) should not exceed 150°C for reliable operation.
Proper thermal management is crucial for the BSM25GD120DLCE3224. Ensure good thermal contact between the module and the heat sink, use a suitable thermal interface material, and maintain a low thermal resistance path. Additionally, consider using a heat sink with a high thermal conductivity and a sufficient surface area.
The recommended gate resistance (Rg) for the BSM25GD120DLCE3224 is typically in the range of 10 ohms to 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. Consult the datasheet and application notes for more information.
Yes, the BSM25GD120DLCE3224 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive circuits are synchronized to prevent uneven current sharing and potential damage.
When designing a PCB for the BSM25GD120DLCE3224, ensure a low-inductance layout, use a solid ground plane, and keep the gate drive circuitry close to the module. Also, consider using a separate power plane for the DC link and ensure proper decoupling capacitors are used to minimize voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BSM25GD120DLCE3224 Overview

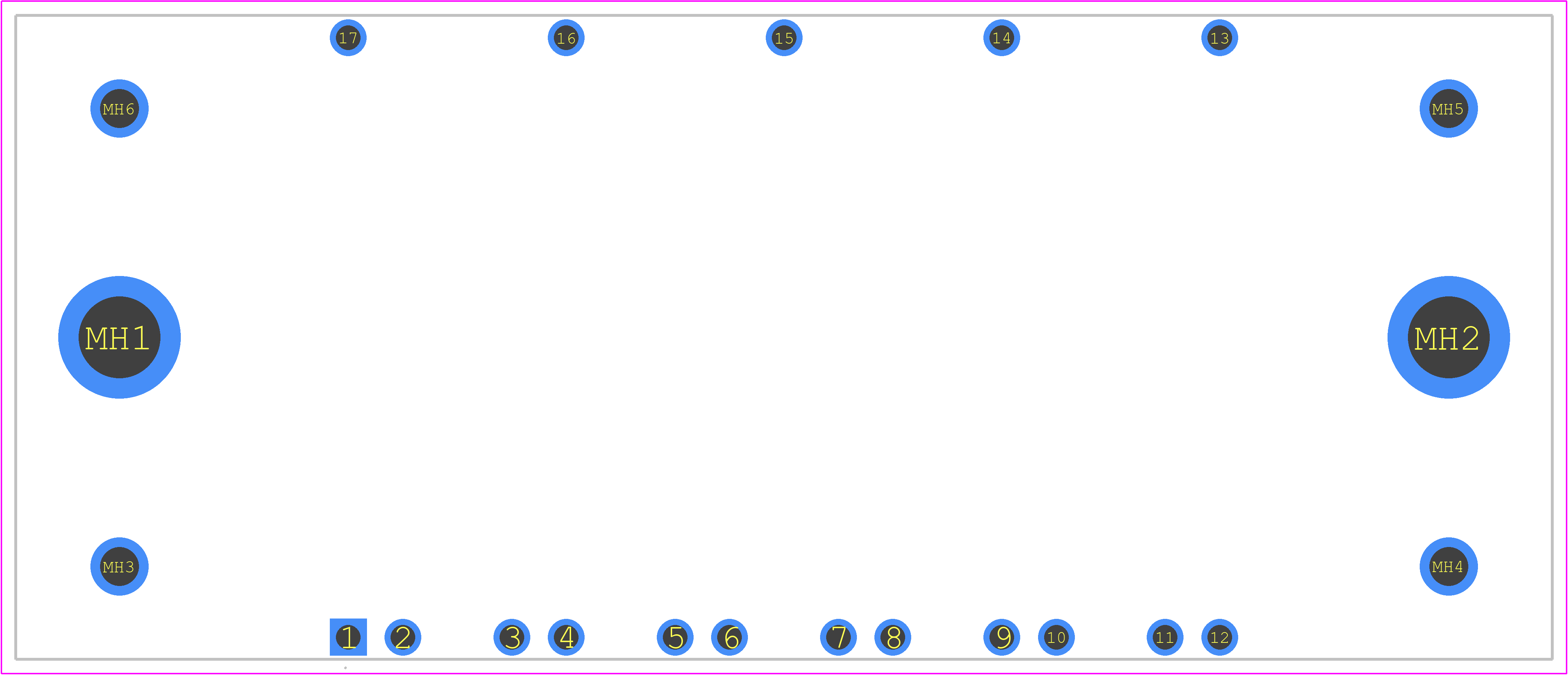

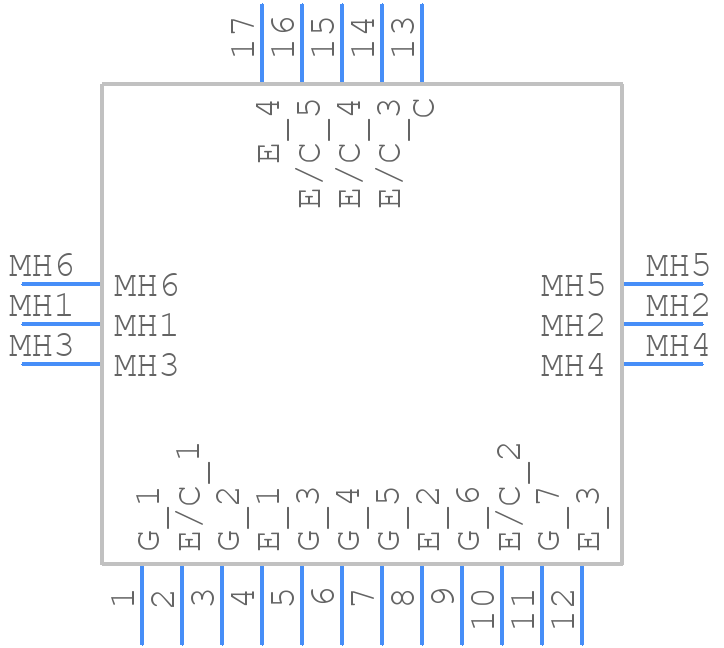

Use the download button to access the BSM25GD120DLCE3224 schematic symbol, PCB footprint, and 3D model.
