BSM25GD120DN2 - Infineon

Description: Trans IGBT Module N-CH 1.2kV 25A nom 200W 17-Pin EconoPACK 2A 107.5x45mm

Download BSM25GD120DN2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

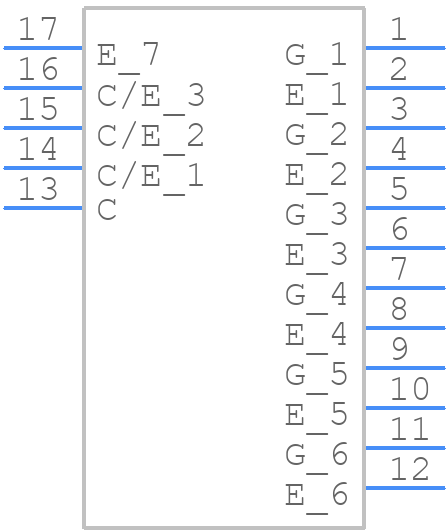

BSM25GD120DN2 - Infineon - PCB symbol
click to zoom
PCB Footprints

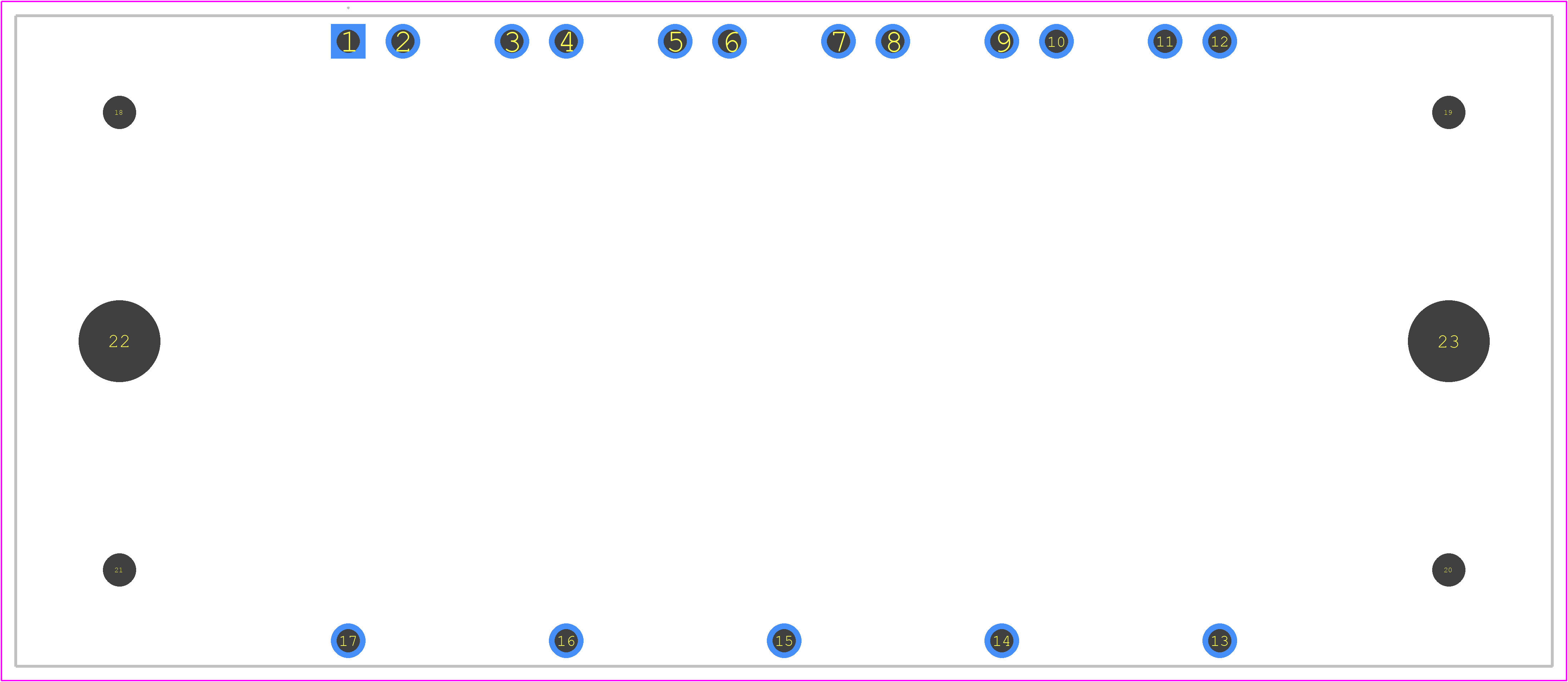

BSM25GD120DN2 - Infineon PCB footprint - Other - Other - ECONOPACK 2
click to zoom
3D Models
BSM25GD120DN2 - Infineon - 3D model - Other - ECONOPACK 2
click to zoom

BSM25GD120DN2 Details

  • Manufacturer Part Number:

    BSM25GD120DN2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    17

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    35 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X17

  • Number of Elements:

    6

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    200 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    450 ns

  • Turn-on Time-Nom (ton):

    140 ns

  • VCEsat-Max:

    3.2 V
