BSM30GP60 - Infineon

Description: IGBT Modules 600V 30A PIM

Download BSM30GP60 Model

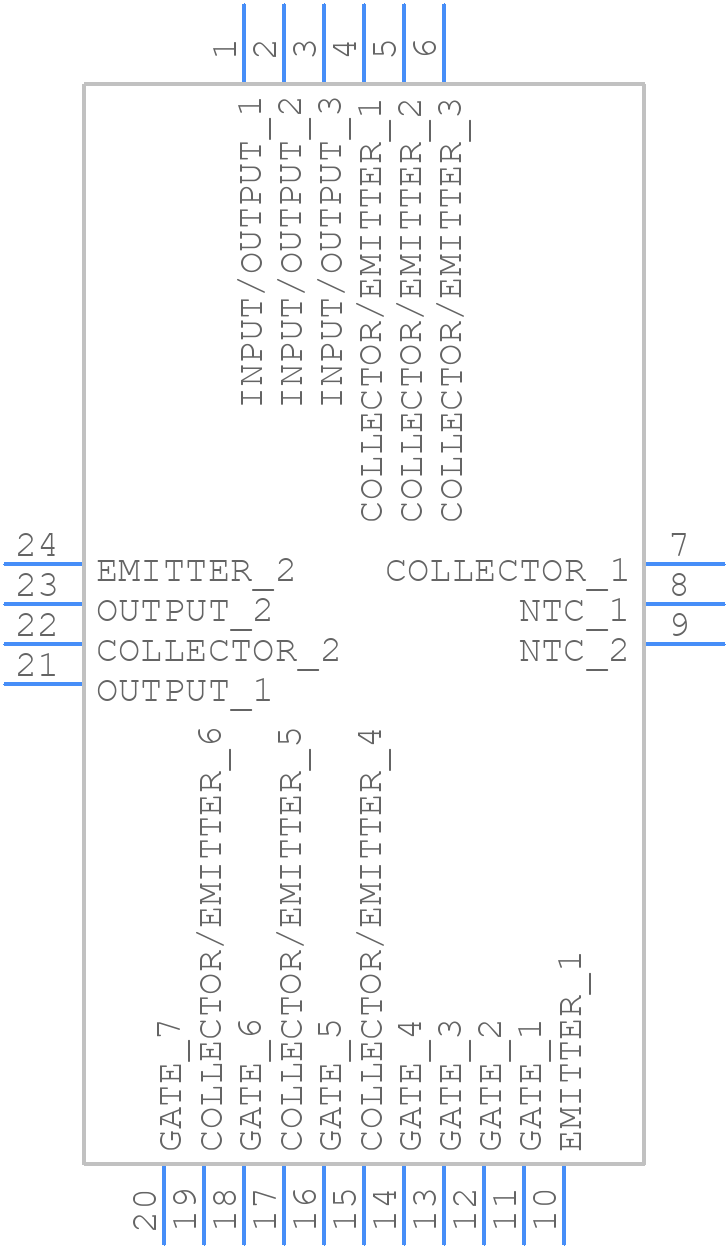

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

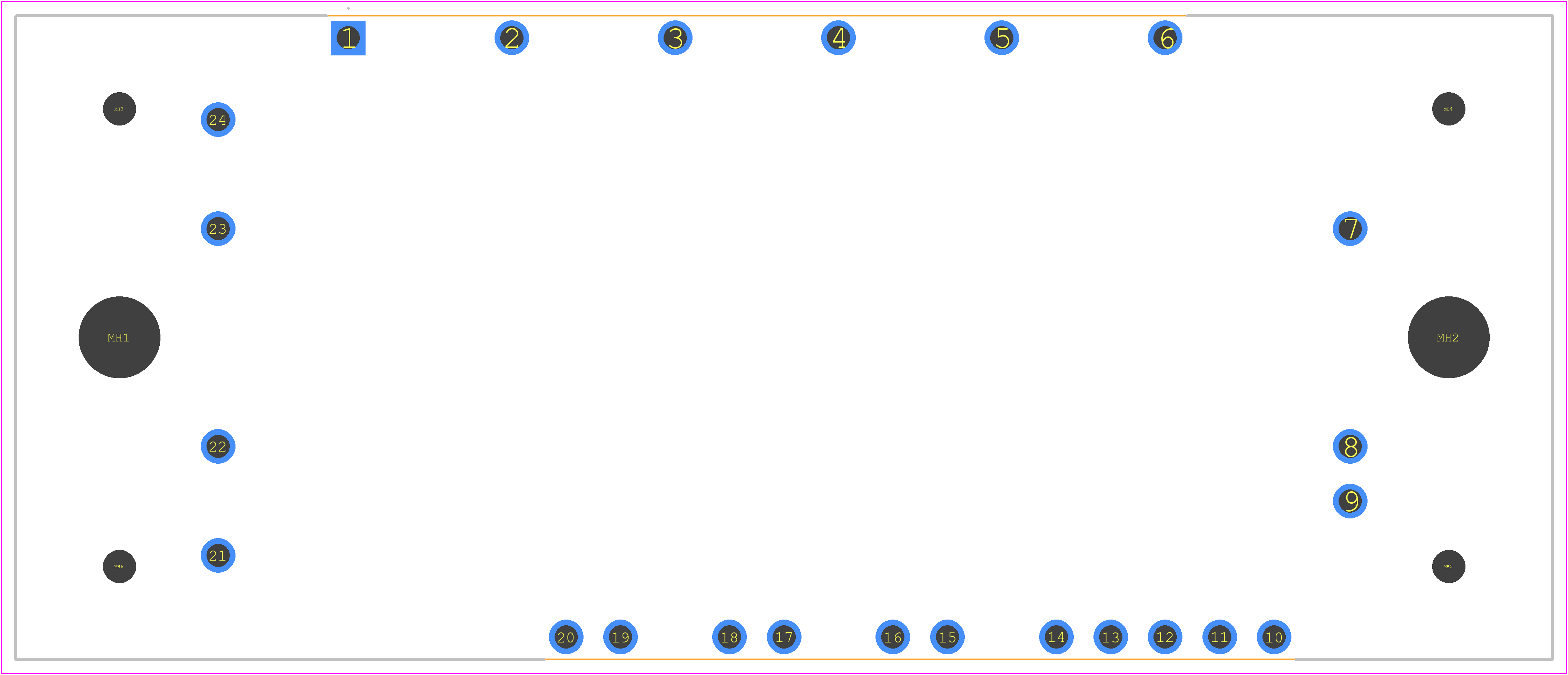

BSM30GP60 - Infineon PCB footprint - Other - Other - BSM30GP60-2
click to zoom
3D Models
BSM30GP60 - Infineon  - 3D model - Other - BSM30GP60-2
click to zoom

BSM30GP60 Details

  • Manufacturer Part Number:

    BSM30GP60

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    70 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    7

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    280 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    315 ns

  • Turn-on Time-Nom (ton):

    105 ns

  • VCEsat-Max:

    2.45 V

BSM30GP60 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the BSM30GP60 is 20 kHz, but it can be used up to 50 kHz with some limitations.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using a thermal interface material, and maintaining a maximum junction temperature of 150°C.
  • The recommended gate resistor value is between 10 ohms and 20 ohms, depending on the specific application and switching frequency.
  • Yes, the BSM30GP60 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management between the modules.
  • The maximum allowable voltage imbalance between the DC links is ±10% of the nominal voltage to ensure proper operation and prevent damage to the module.
