BSM35GP120 - Infineon

Description: Module: IGBT; diode/transistor; buck chopper; Urmax: 1.6kV; Ic: 40A

Download BSM35GP120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

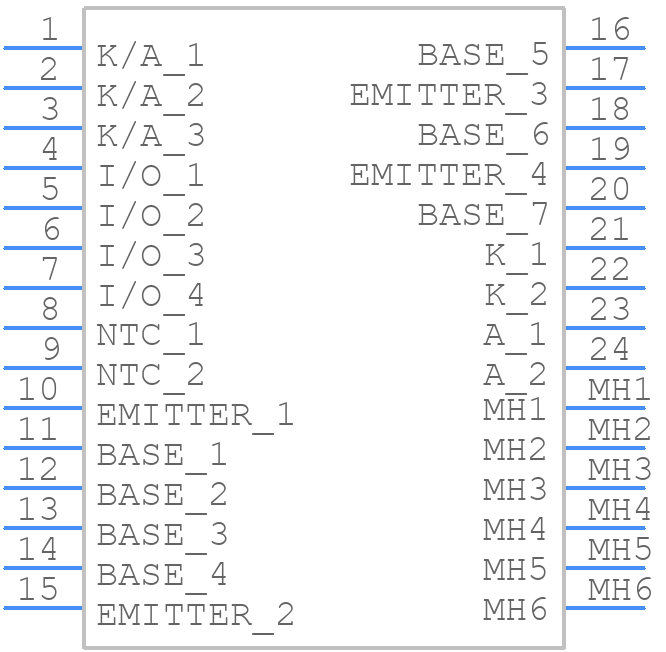

BSM35GP120 - Infineon - PCB symbol
click to zoom
PCB Footprints

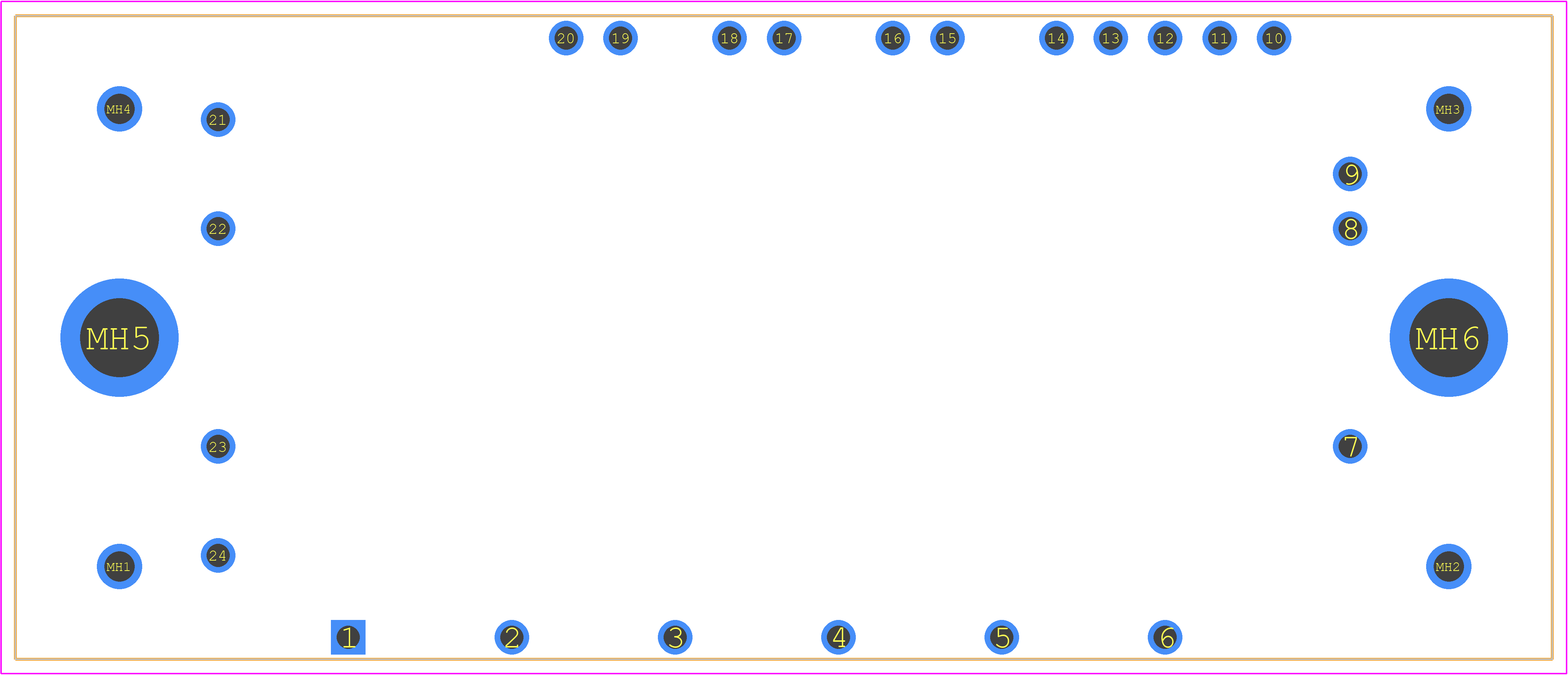

BSM35GP120 - Infineon PCB footprint - Other - Other - BSM35GP120-4
click to zoom
3D Models
BSM35GP120 - Infineon - 3D model - Other - BSM35GP120-4
click to zoom

BSM35GP120 Details

  • Manufacturer Part Number:

    BSM35GP120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    45 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    7

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    230 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    390 ns

  • Turn-on Time-Nom (ton):

    105 ns

  • VCEsat-Max:

    2.85 V

BSM35GP120 Frequently Asked Questions (FAQs)

  • The maximum allowed overcurrent for the BSM35GP120 is 2.5 times the nominal current (120A) for a maximum of 1 second, according to the datasheet.
  • Proper thermal management for the BSM35GP120 involves ensuring good heat sink contact, using a thermal interface material, and maintaining a maximum junction temperature of 150°C. A heat sink with a thermal resistance of 0.5 K/W or lower is recommended.
  • The recommended gate resistor value for the BSM35GP120 is between 10 ohms and 20 ohms, depending on the specific application and switching frequency.
  • Yes, the BSM35GP120 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management. Infineon provides a application note (AN2019-01) that provides guidelines for parallel operation of IGBT modules.
  • The maximum allowed voltage imbalance between the DC links in a 3-phase inverter using the BSM35GP120 is ±10% of the nominal DC link voltage, according to Infineon's application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BSM35GP120 Overview

Use the download button to access the BSM35GP120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSM35, or try a keyword search, such as IGBTs
