BSM50GD120DN2 - Infineon

Description: IGBT 3ph Full-Bridge 1200V 72A ECONOPACK Infineon, BSM50GD120DN2, IGBT Module, Hex, 50 A max, 1200 V, 17-Pin EconoPACK2

Download BSM50GD120DN2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

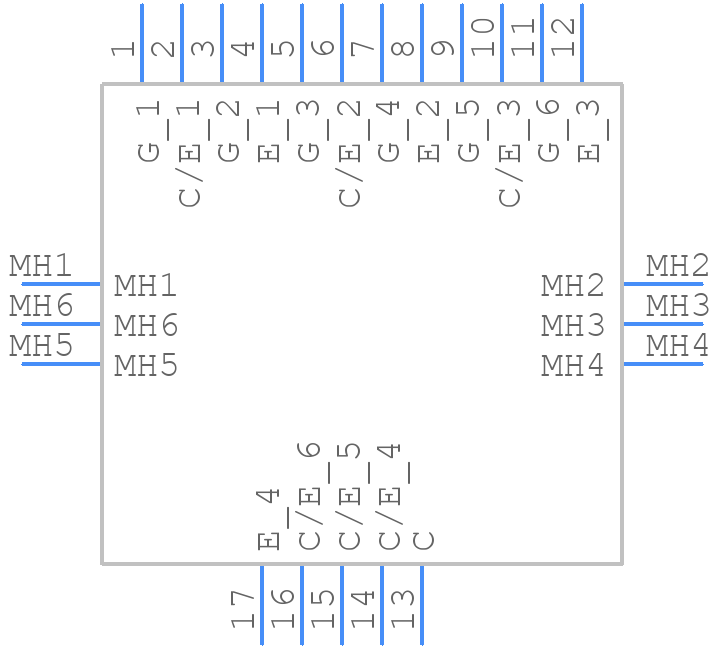

BSM50GD120DN2 - Infineon - PCB symbol
click to zoom
PCB Footprints

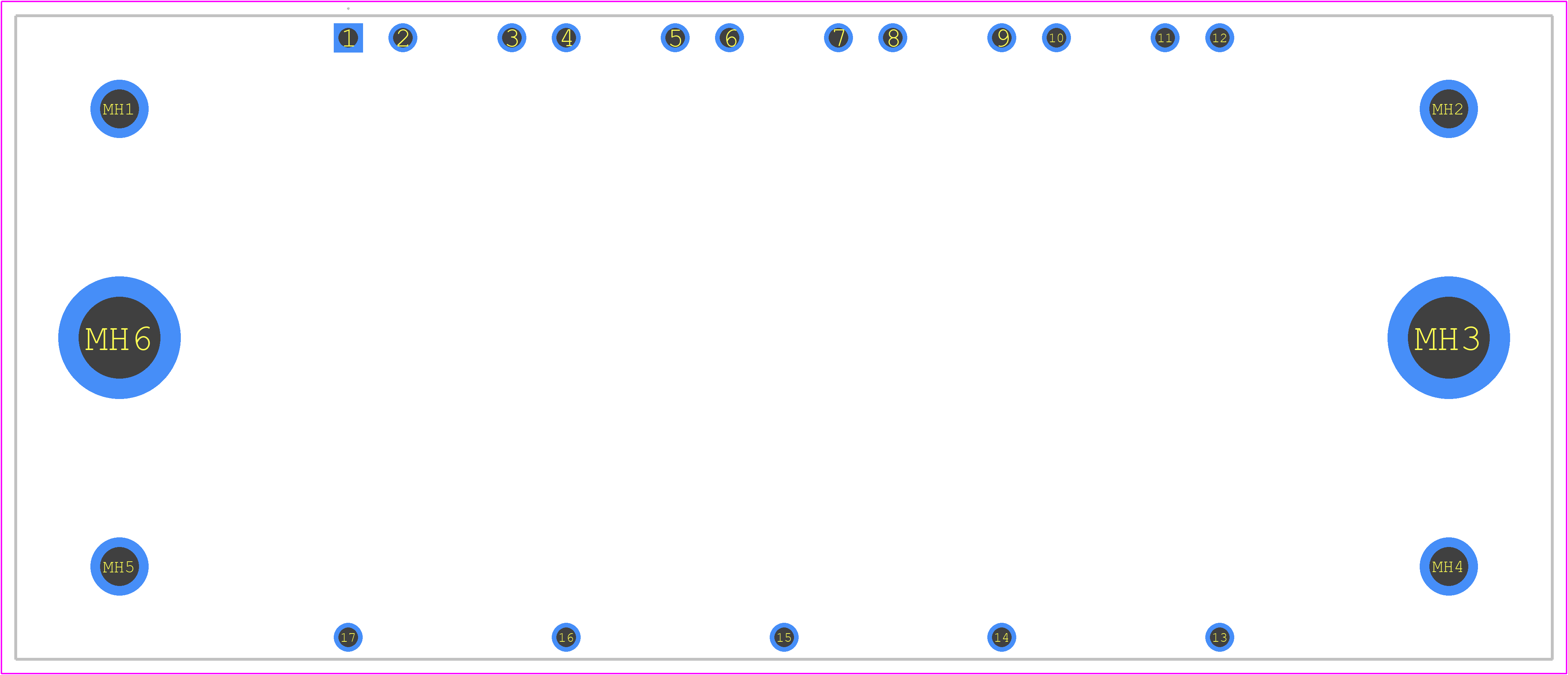

BSM50GD120DN2 - Infineon PCB footprint - Other - Other - ECONOPACK 2K
click to zoom
3D Models
BSM50GD120DN2 - Infineon - 3D model - Other - ECONOPACK 2K
click to zoom

BSM50GD120DN2 Details

  • Manufacturer Part Number:

    BSM50GD120DN2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    17

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    72 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X17

  • Number of Elements:

    6

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    350 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    450 ns

  • Turn-on Time-Nom (ton):

    100 ns

  • VCEsat-Max:

    3.2 V

BSM50GD120DN2 Frequently Asked Questions (FAQs)

  • The maximum allowed overcurrent for the BSM50GD120DN2 is 2.5 times the nominal current (IC) for a maximum of 10ms, according to the datasheet.
  • To ensure proper thermal management, ensure a good thermal interface between the module and the heat sink, use a suitable thermal interface material, and maintain a maximum junction temperature (Tj) of 150°C.
  • The recommended gate resistor value for the BSM50GD120DN2 is between 10Ω and 20Ω, depending on the specific application and switching frequency.
  • Yes, the BSM50GD120DN2 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management between the parallel modules.
  • The maximum allowed voltage imbalance between the DC links in a 3-phase inverter application is ±10% of the nominal DC link voltage, according to the datasheet.
