BTG70008A footprint, schematic symbol and 3D model by Infineon

BTG70008A - Infineon

Description: High-side switch with diagnosis and embedded protection • Selectable integrated I2t function for wire harness protection • Operating current < 60 µA for active supply in key-off mode • IDL pin for microcontroller wake-up in idle mode • Adjustable overcurrent threshold • Capacitive load switching mode • Sequential diagnosis for status readout • Reverse ON for low power dissipation in reverse polarity • ISO 26262 safety element out of context for safety requirements up to ASIL D

Download BTG70008A Model

Schematic
symbols

PCB
footprints

3D
models

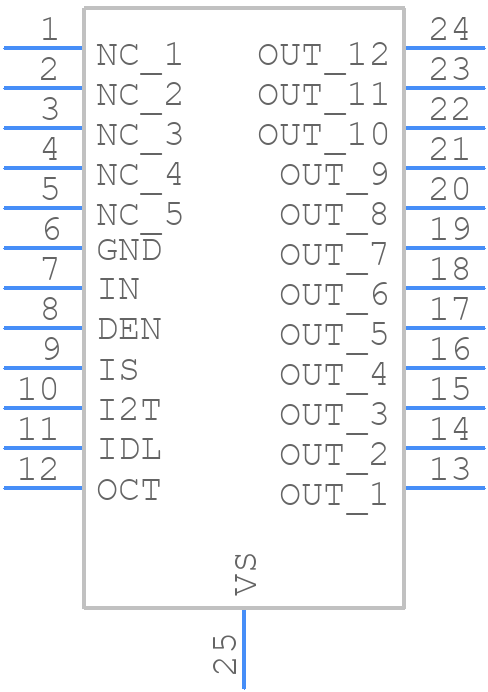

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTG70008A
Part Number BTG70008A
Manufacturer Infineon
Pin Count 25
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-TSDSO-24....
Released Date Feb 2, 2026
Last Modified Date Feb 2, 2026 11:11 AM UTC
Pinout / Pin List Click Here (Member Only)

BTG70008A Details

Manufacturer Part Number:
BTG70008A
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

BTG70008A Overview

Use the download button to access the BTG70008A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BTG70, or try a keyword search, such as Peripheral Drivers
