BTM511 - Laird Technologies

Description: LAIRD - BTM511 - BLUETOOTH MODULE, AUDIO, INT ANTENNA

Download BTM511 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

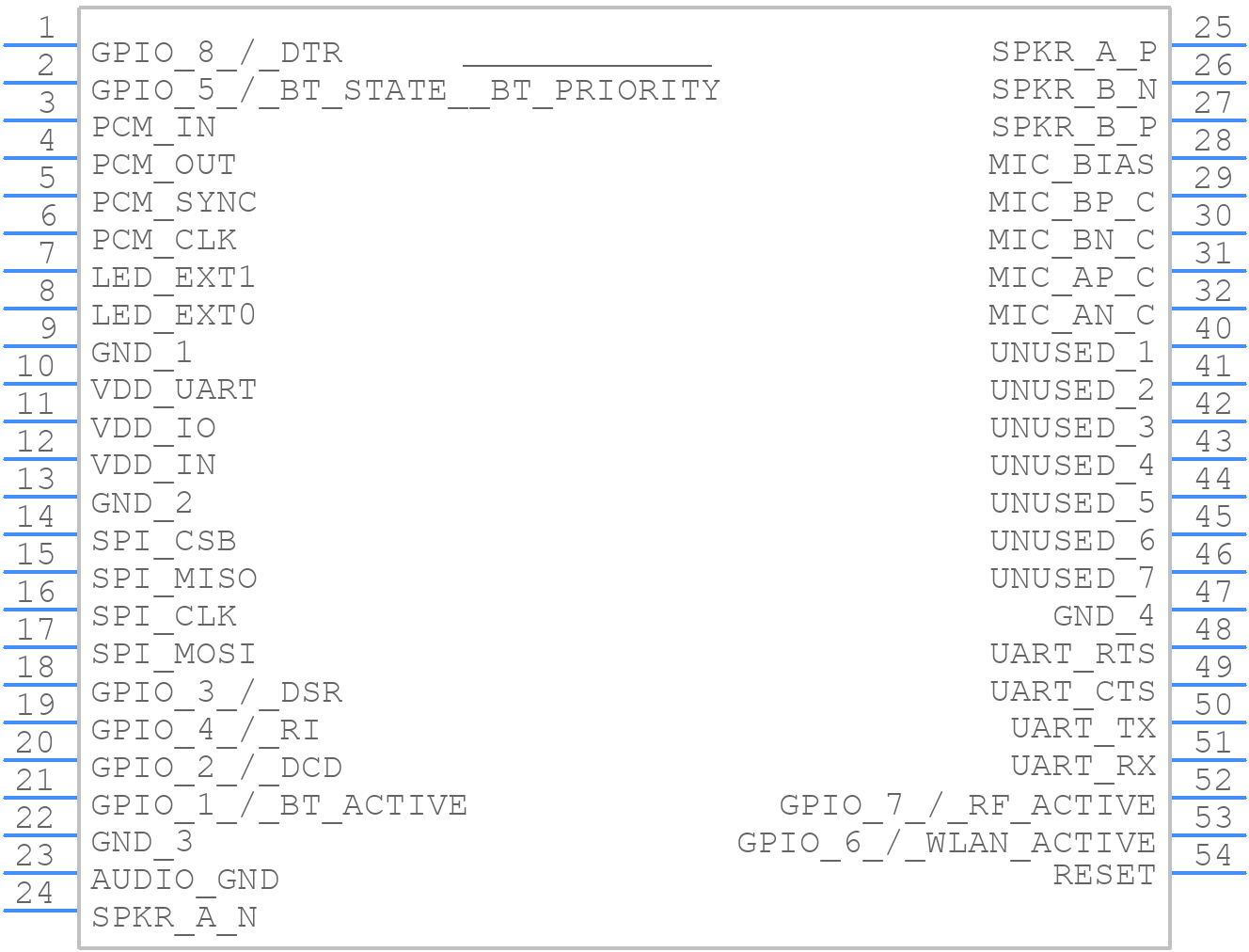

Symbol
BTM511 - Laird Technologies - PCB symbol
click to zoom

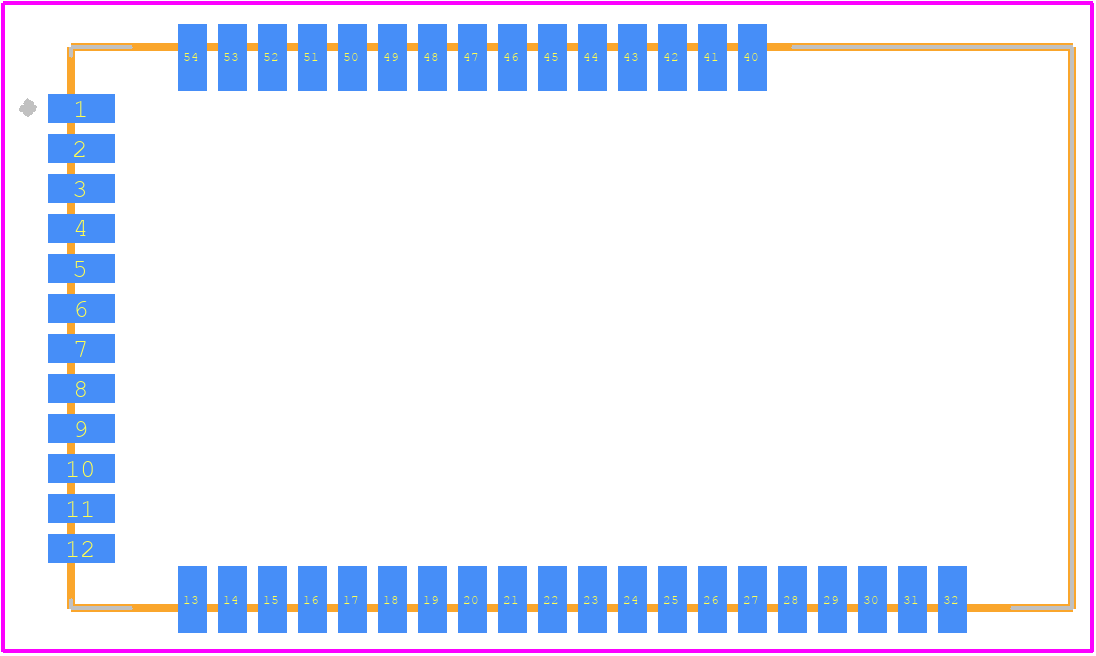

PCB Footprints
BTM511 - Laird Technologies PCB footprint - Other - Other - BTM511-3
click to zoom
3D Models
BTM511 - Laird Technologies - 3D model - Other - BTM511-3
click to zoom

BTM511 Details

  • Manufacturer Part Number:

    BTM511

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    MODULE-58

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Qnity Laird

  • Data Rate:

    300 Mbps

  • JESD-30 Code:

    R-XXMA-N58

  • Length:

    25 mm

  • Number of Functions:

    1

  • Number of Terminals:

    58

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.7 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14 mm

BTM511 Frequently Asked Questions (FAQs)

  • The BTM511 can operate in temperatures ranging from -40°C to +85°C.
  • For optimal performance, ensure the module is properly grounded, use a high-quality antenna, and configure the module's power mode according to your application's requirements.
  • The typical current consumption of the BTM511 is around 40mA in transmit mode and 10mA in receive mode.
  • Yes, the BTM511 is designed to operate in humid environments, but it's essential to follow proper sealing and conformal coating procedures to ensure reliability.
  • To troubleshoot connectivity issues, check the antenna connection, ensure the module is properly configured, and verify that the device is in range of the access point.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTM511 Overview

Use the download button to access the BTM511 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTM51, or try a keyword search, such as Other Telecom ICs
