BTS7930B footprint, schematic symbol and 3D model by Infineon

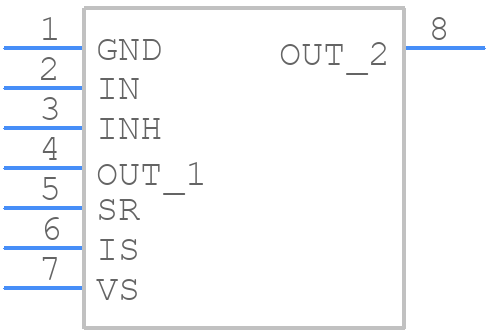

Symbol

click to zoom

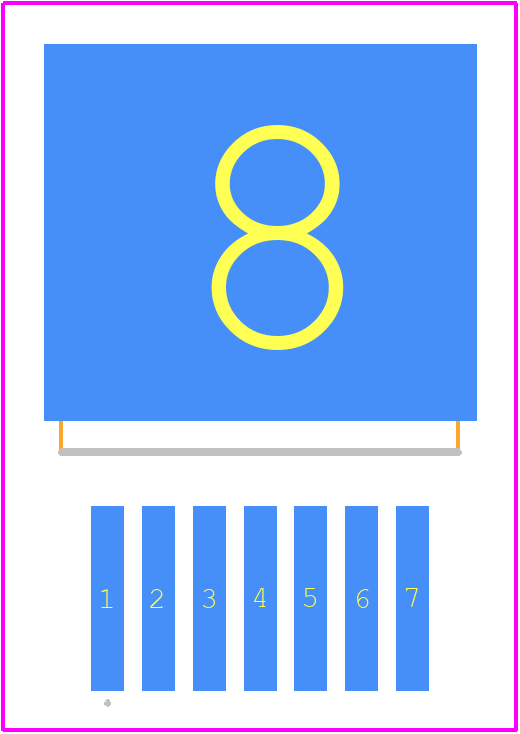

PCB Footprints

BTS7930B - Infineon PCB footprint - Other - Other - BTS7930B-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS7930B
Part Number BTS7930B
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BTS7930B-4
Released Date Jan 17, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BTS7930B Details

Manufacturer Part Number:
BTS7930B
Part Life Cycle Code:
Obsolete
Part Package Code:
D2PAK
Package Description:
PLASTIC, TO-263, 7 PIN
Pin Count:
4
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Additional Feature:
CONTAINS DC MOTOR DRIVER
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
JESD-30 Code:
R-PSSO-G7
Number of Functions:
1
Number of Terminals:
7
Package Body Material:
PLASTIC/EPOXY
Package Code:
TO-263
Package Equivalence Code:
SMSIP7H,.55,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Supply Current-Max (Isup):
3 mA
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
18 V
Surface Mount:
YES
Technology:
MOS
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Width:
9.2 mm

BTS7930B Frequently Asked Questions (FAQs)

The BTS7930B can operate in a temperature range of -40°C to 150°C, making it suitable for high-reliability applications.
The BTS7930B has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper heat dissipation.
A 2-layer or 4-layer PCB is recommended, with a solid ground plane and a separate power plane for the BTS7930B. The device should be placed near the power source and the load, and the PCB should be designed to minimize inductance and resistance.
The BTS7930B has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits, but additional external protection devices such as TVS diodes or voltage regulators can be used to provide extra protection.
The BTS7930B has a maximum current rating of 30A, but the actual current handling capability depends on the application and the PCB design.

Trust Checks

Community Provided

System Verified

Community Approved

BTS7930B Overview

Use the download button to access the BTS7930B schematic symbol and PCB footprint.
