A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating temperature range and derate the device's power handling accordingly.
The BTT3018EJXUMA1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Yes, the BTT3018EJXUMA1 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions, and consider additional testing and validation for your specific use case.
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, thermal management, and power supply quality. Use oscilloscopes or logic analyzers to debug the device's behavior, and consider seeking support from Infineon's technical support team or a qualified engineer.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTT3018EJXUMA1 Overview

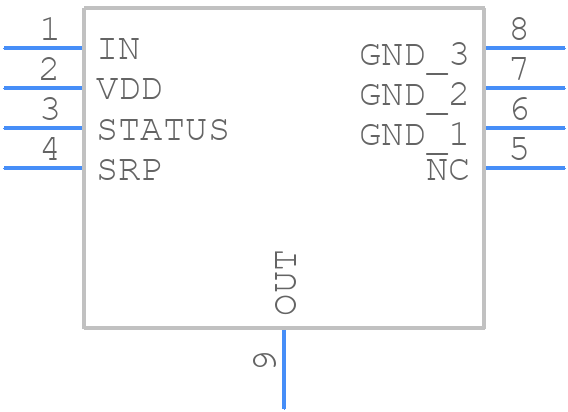

Use the download button to access the BTT3018EJXUMA1 schematic symbol, PCB footprint, and 3D model.
