BTT3050EJXUMA1 footprint, schematic symbol and 3D model by Infineon

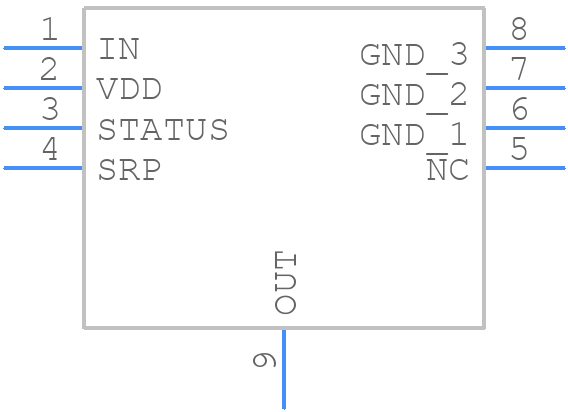

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTT3050EJXUMA1
Part Number BTT3050EJXUMA1
Manufacturer Infineon
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-TDSO-8-31
Released Date Nov 20, 2023
Last Modified Date Nov 20, 2023 10:47 AM UTC
Pinout / Pin List Click Here (Member Only)

BTT3050EJXUMA1 Details

Manufacturer Part Number:
BTT3050EJXUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TDSO-8
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
7
Additional Feature:
CURRENT LIMIT:22A; THERMAL SHUTDOWN:200C
Adjustable Threshold:
NO
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-PDSO-G8
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSOP
Package Equivalence Code:
TSOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE
Screening Level:
AEC-Q100
Seated Height-Max:
1.15 mm
Supply Current-Max (Isup):
0.25 mA
Supply Voltage-Max (Vsup):
6.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm
