BU21182FS-E2 - ROHM Semiconductor

Description: Capacitive Touch Sensors BU21182FS is a capacitive switch controller for switch operation. Based on the result of detecting changes in capacitance, judge the operation of Switch ON / OFF / Long Press.

Download BU21182FS-E2 Model

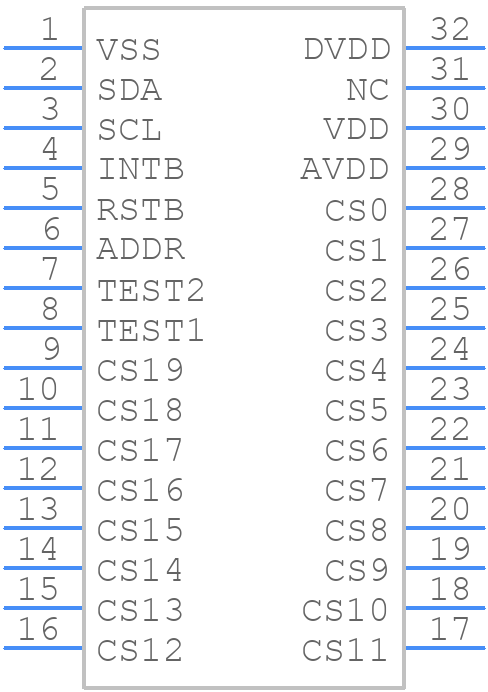

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

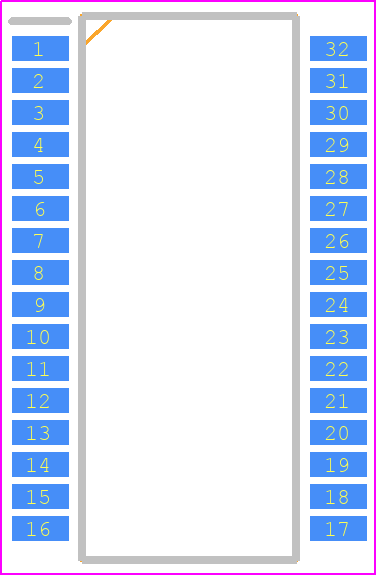

BU21182FS-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP A32
click to zoom
3D Models
BU21182FS-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP A32
click to zoom

BU21182FS-E2 Details

  • Manufacturer Part Number:

    BU21182FS-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-32

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • Length:

    13.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.01 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.4 mm

BU21182FS-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. ROHM also recommends derating the output current and voltage according to the temperature derating curve provided in the datasheet.
  • ROHM recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7uF to 10uF for the input capacitor. This helps to reduce voltage ripple and ensure stable operation.
  • Yes, the BU21182FS-E2 is qualified for automotive and high-reliability applications. ROHM provides a dedicated automotive-grade version, BU21182FS-E2-A, which meets the AEC-Q100 standard. However, it's essential to follow proper design and testing guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot common issues, start by verifying the input voltage, output current, and PCB layout. Check for proper thermal design, input capacitor selection, and output capacitor selection. Use an oscilloscope to monitor the output voltage and current waveforms. If issues persist, consult ROHM's application notes and technical support resources for further guidance.
