ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (Ta = -40°C to 125°C) and consider derating the device's power dissipation according to the ambient temperature.
ROHM recommends using a ceramic capacitor with a value of 10uF to 22uF, and an X7R or X5R dielectric, placed as close as possible to the VIN pin to ensure stable operation.
To prevent EOS damage, follow proper ESD handling procedures, use an anti-static wrist strap, and ensure that the device is stored in an anti-static bag or container. Avoid touching the device's pins or exposing it to high-voltage sources.
ROHM recommends a soldering temperature of 260°C (max) and a soldering time of 10 seconds (max) to prevent damage to the device. A soldering iron with a temperature control is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU4922FVE-TR Overview

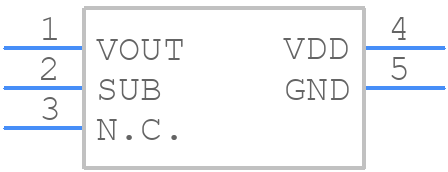

Use the download button to access the BU4922FVE-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU492,
or try a keyword search, such as Power Management Circuits
