A good PCB layout for BUF20800ATDCPRQ1 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor (COUT) to minimize ringing and oscillations.
The output capacitor (COUT) should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general guideline is to use a capacitor with a value between 10uF to 100uF, and an ESR of less than 100mΩ. The capacitor should also be rated for the maximum output voltage and operating temperature.
The BUF20800ATDCPRQ1 can handle an input voltage up to 5.5V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a suitable output capacitor (COUT), and ensure that the input voltage is within the specified range. Additionally, the device should be operated within the recommended operating conditions, and the input and output capacitors should be properly decoupled.
The BUF20800ATDCPRQ1 can provide a maximum output current of 2A, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF20800ATDCPRQ1 Overview

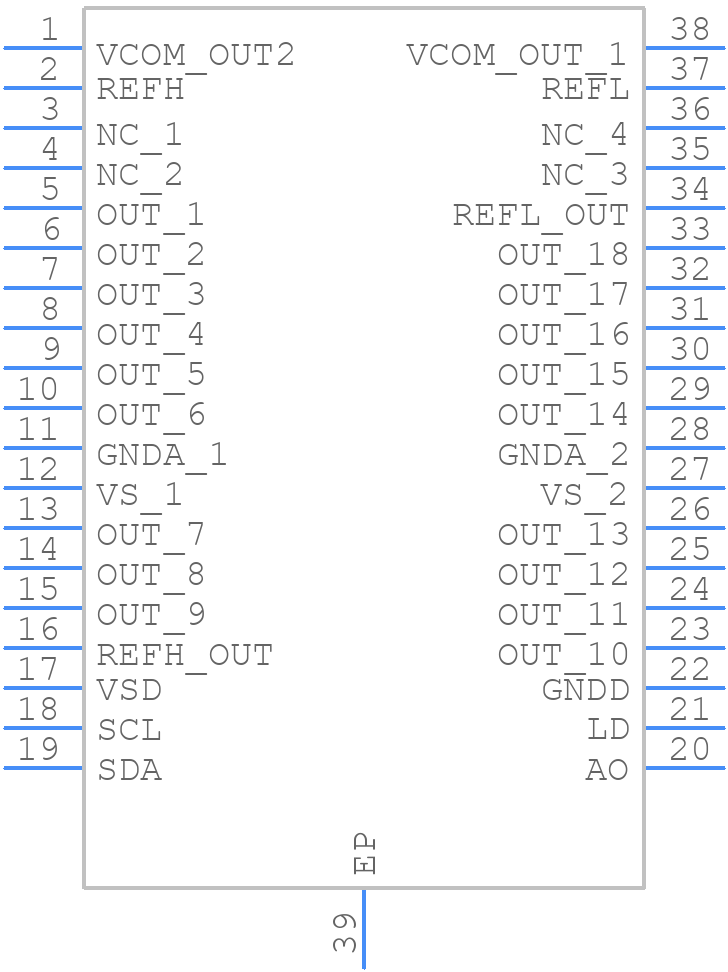

Use the download button to access the BUF20800ATDCPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF20,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
