BUS1DJC3GWZ-E2 - ROHM Semiconductor

Description: ROHM - BUS1DJC3GWZ-E2 - Power Load Distribution Switch, High Side, Active High, 5V, 1 Output, 2A, 0.14ohm, UCSP-4

Download BUS1DJC3GWZ-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

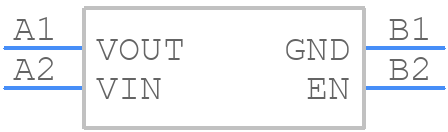

BUS1DJC3GWZ-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BUS1DJC3GWZ-E2 - ROHM Semiconductor PCB footprint - BGA - BGA - UCSP30L1
click to zoom
3D Models
BUS1DJC3GWZ-E2 - ROHM Semiconductor - 3D model - BGA - UCSP30L1
click to zoom

BUS1DJC3GWZ-E2 Details

  • Manufacturer Part Number:

    BUS1DJC3GWZ-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UCSP30L1-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.12

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-XBGA-B4

  • Length:

    0.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA4,2X2,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR, EMBOSSED

  • Seated Height-Max:

    0.35 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm

BUS1DJC3GWZ-E2 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material to improve heat transfer.
  • The BUS1DJC3GWZ-E2 has built-in ESD protection, but it is still recommended to follow standard ESD handling precautions during assembly and testing. A minimum of 2kV HBM and 100V MM protection is recommended.
  • Yes, the BUS1DJC3GWZ-E2 is AEC-Q100 qualified and suitable for use in high-reliability and automotive applications. However, additional testing and validation may be required depending on the specific application.
  • The recommended soldering conditions are 260°C peak temperature, 10-30 seconds dwell time, and a soldering iron temperature of 350°C maximum.
