For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to place thermal vias under the IC to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's power dissipation according to the ambient temperature.
The BV1HD090FJ-CE2 has built-in ESD protection diodes, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, latch-up prevention can be achieved by following proper power-up sequencing and ensuring that the device is operated within the recommended operating conditions.
Yes, the BV1HD090FJ-CE2 is suitable for high-reliability and automotive applications. However, it is essential to follow the recommended operating conditions, and to consult with ROHM Semiconductor for specific requirements and qualifications.
The recommended soldering conditions for the BV1HD090FJ-CE2 are a peak temperature of 260°C, with a soldering time of 10 seconds or less. It is essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BV1HD090FJ-CE2 Overview

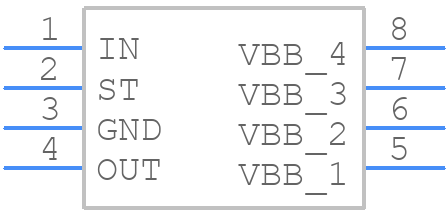

Use the download button to access the BV1HD090FJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BV1HD,
or try a keyword search, such as Power Management Circuits
