Description:Power Switch ICs - Power Distribution Automotive IPD Series 2ch High Side Switch: BV2HM050EFV-C is a 2ch high side switch for automotive application. It has a built in hiccup mode overcurrent protection function, thermal shutdown protection function, open load detection function, under v
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Screening Level:
AEC-Q100
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
10 mA
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
6 V
Supply Voltage-Nom (Vsup):
14 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+3V
Width:
4.4 mm
BV2HM050EFV-CE2 Frequently Asked Questions (FAQs)
ROHM recommends a thermal pad size of 2.5mm x 2.5mm with a minimum of 10 thermal vias (0.3mm diameter) to ensure efficient heat dissipation. Additionally, a solid copper plane on the bottom layer can help to further reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow ROHM's recommended derating guidelines for the BV2HM050EFV-CE2. This includes reducing the maximum operating voltage and current as temperature increases. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
ROHM recommends soldering the BV2HM050EFV-CE2 using a reflow soldering process with a peak temperature of 260°C (500°F) for 10-30 seconds. The component should be stored in a dry environment (less than 20% RH) and soldered within 168 hours of opening the package.
Yes, the BV2HM050EFV-CE2 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow ROHM's recommended usage guidelines and ensure that the component is used within its specified operating conditions.
To prevent EOS and ESD damage, handle the BV2HM050EFV-CE2 with care, using anti-static wrist straps, mats, and packaging materials. Avoid touching the component's pins or exposed pads, and ensure that the PCB is properly grounded during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BV2HM050EFV-CE2 Overview

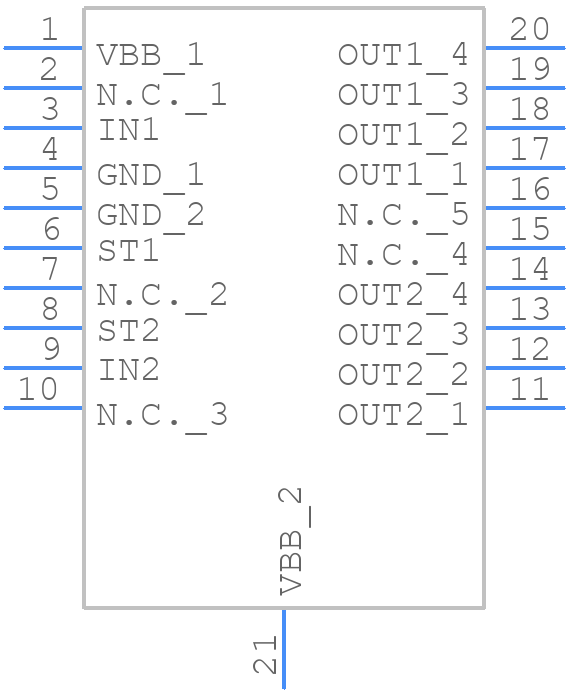

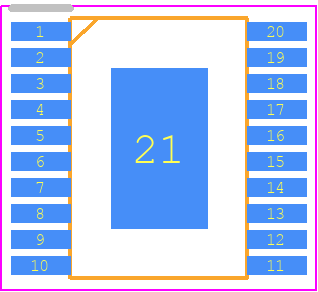

Use the download button to access the BV2HM050EFV-CE2 schematic symbol, PCB footprint, and 3D model.
