- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CA04-41EWA
- Part Number CA04-41EWA
- Manufacturer Kingbright
- Pin Count 20
- Part Category Display
- Package Category Other

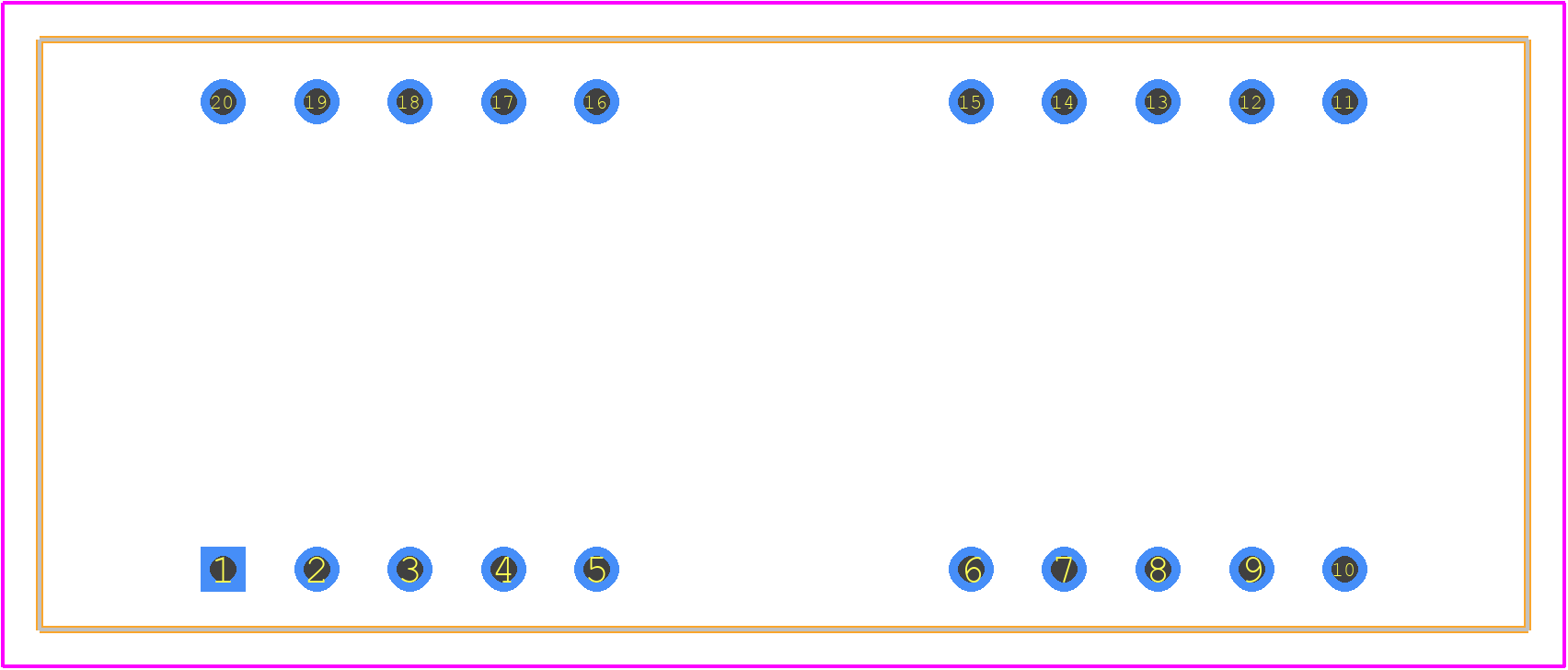

- Footprint Name Other - CA04-41EWA-2
- Released Date Aug 12, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CA04-41EWA Details
-
Manufacturer Part Number:
CA04-41EWA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
6
-
Additional Feature:
IC COMPATIBLE
-
Color:
HIGH EFFICIENCY RED
-
Color@Wavelength:
Orange
CA04-41EWA Frequently Asked Questions (FAQs)
-
The recommended storage temperature for CA04-41EWA is -20°C to 60°C, with a relative humidity of 60% or less.
-
Yes, CA04-41EWA can be used in outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, UV, and extreme temperatures.
-
The maximum soldering temperature for CA04-41EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
-
Yes, CA04-41EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
-
The typical lifespan of CA04-41EWA is 50,000 hours or more, depending on the operating conditions and usage.
Trust Checks
Expert Contribution
System Verified
Community Approved
CA04-41EWA Overview

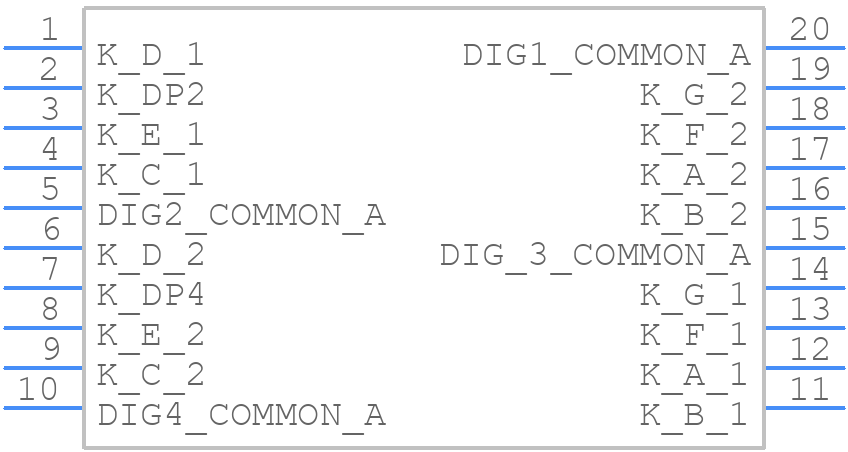

Use the download button to access the CA04-41EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA04-,
or try a keyword search, such as LED Displays
