CA04-41SURKWA - Kingbright

Description: 7-Seg Display 4-Digit 10.16mm Red, PK

Download CA04-41SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

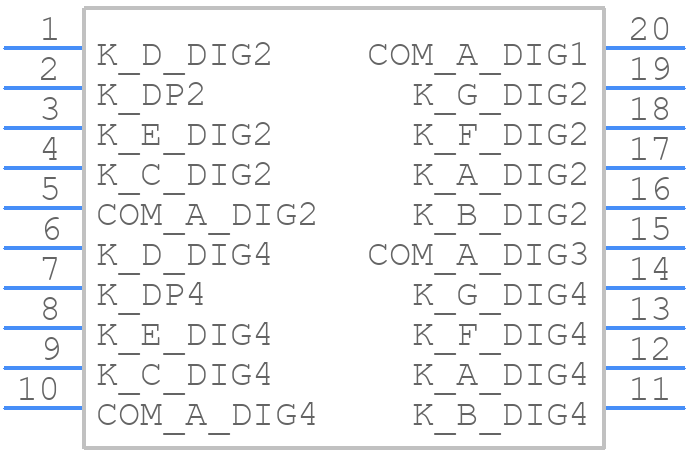

CA04-41SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

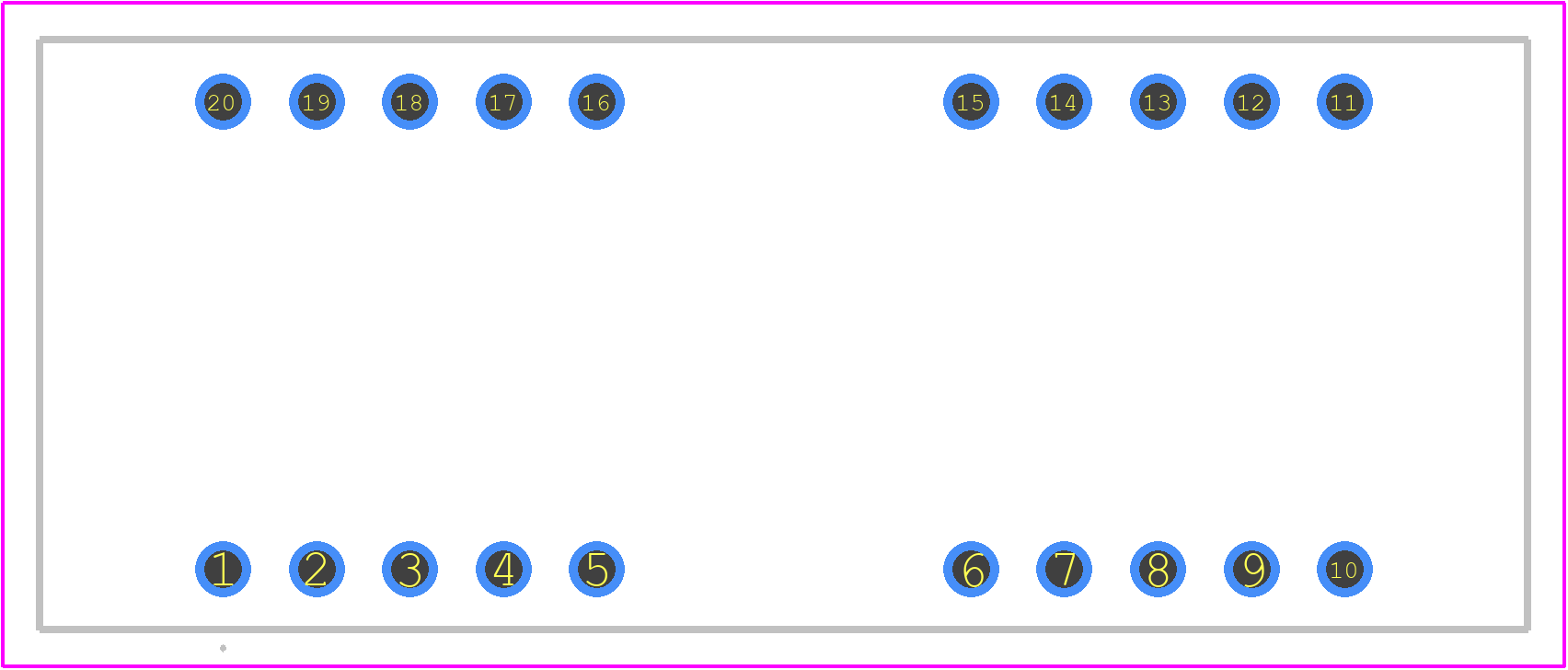

CA04-41SURKWA - Kingbright PCB footprint - Other - Other - CA04-41SURKWA-3
click to zoom
3D Models
CA04-41SURKWA - Kingbright - 3D model - Other - CA04-41SURKWA-3
click to zoom

CA04-41SURKWA Details

  • Manufacturer Part Number:

    CA04-41SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    2 BANKS, COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY
