CA25-12SURKWA - Kingbright

Description: KINGBRIGHT - CA25-12SURKWA - 7 Segment LED Display, Mechanically Rugged, Red, 20 mA, 1.95 V, 24 mcd, 4, 6.2 mm,-40°C To +85°C

Download CA25-12SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

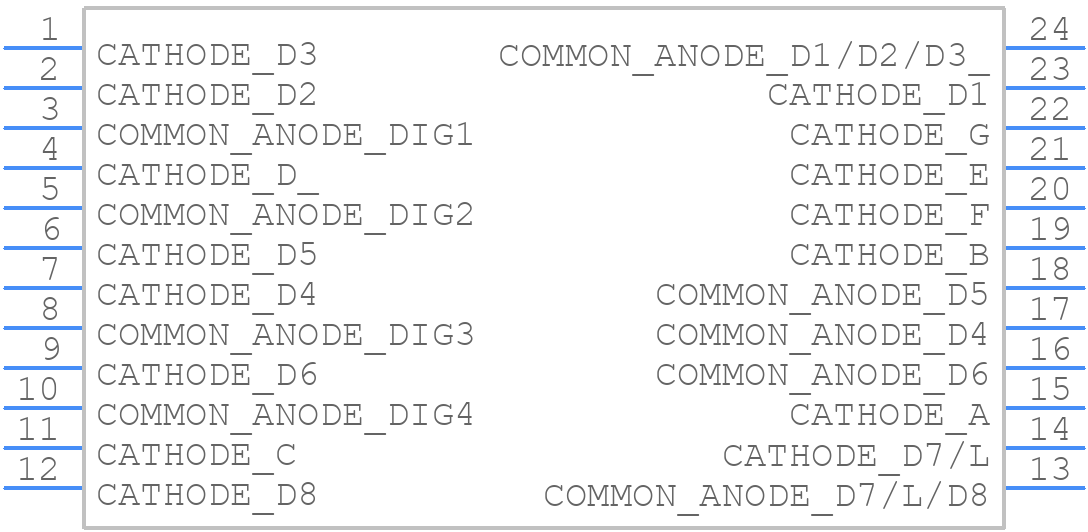

CA25-12SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

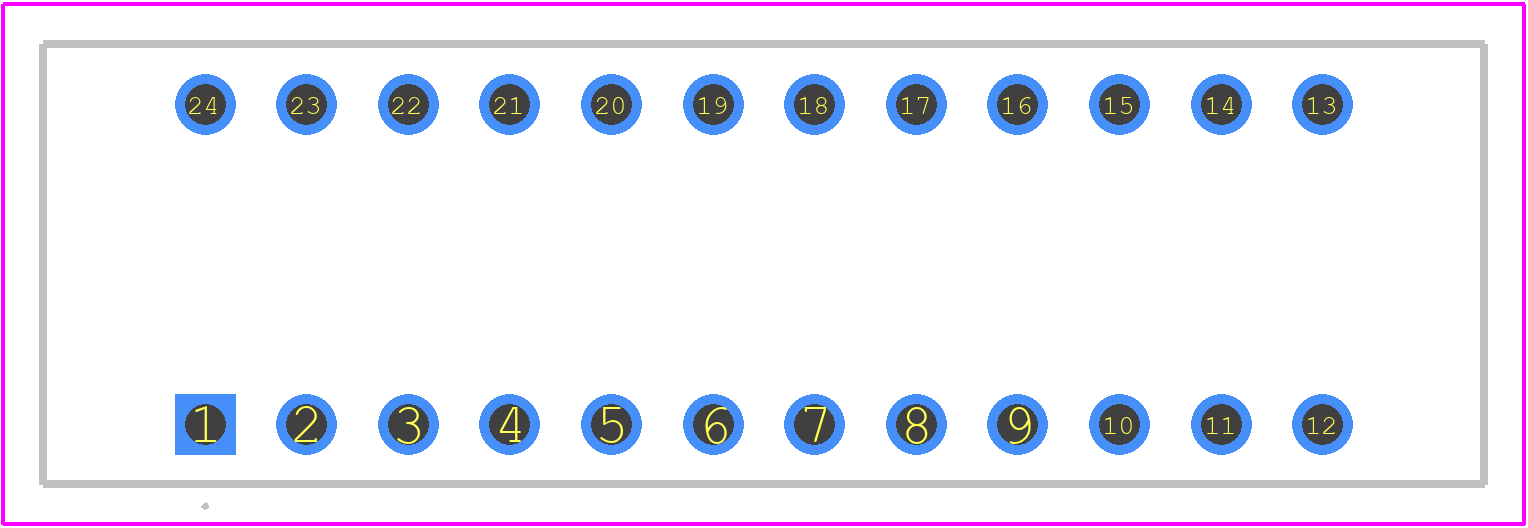

CA25-12SURKWA - Kingbright PCB footprint - Other - Other - CA25-12SURKWA-2
click to zoom
3D Models
CA25-12SURKWA - Kingbright - 3D model - Other - CA25-12SURKWA-2
click to zoom

CA25-12SURKWA Details

  • Manufacturer Part Number:

    CA25-12SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-24

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    red

  • Configuration:

    COMMON ANODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    6.2 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

CA25-12SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CA25-12SURKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, CA25-12SURKWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
  • The typical junction temperature of CA25-12SURKWA is 125°C, but it can operate up to 150°C for short periods.
  • Yes, CA25-12SURKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The recommended reflow soldering temperature profile for CA25-12SURKWA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.
