- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CA3096AE
- Part Number CA3096AE
- Manufacturer Renesas Electronics
- Pin Count 16
- Part Category Transistor BJT NPN
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - E16.3 (JEDEC MS-001-BB ISSUE D)
- Released Date Mar 20, 2021
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
CA3096AE Details
-
Manufacturer Part Number:
CA3096AE
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Renesas Electronics Corporation
-
YTEOL:
0
Trust Checks
Community Provided
System Verified
Community Approved
CA3096AE Overview

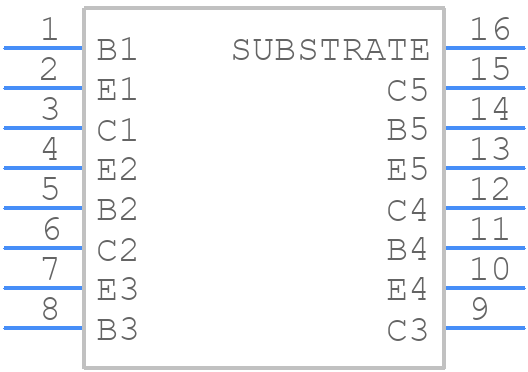

Use the download button to access the CA3096AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA309,
or try a keyword search, such as Small Signal Bipolar Transistors
