CA3306E - Rochester Electronics

Description: CA3306 - A/D Converter

Download CA3306E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

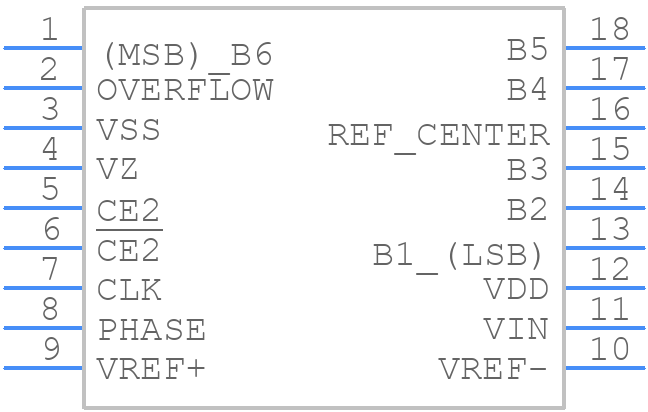

CA3306E - Rochester Electronics - PCB symbol
click to zoom
PCB Footprints

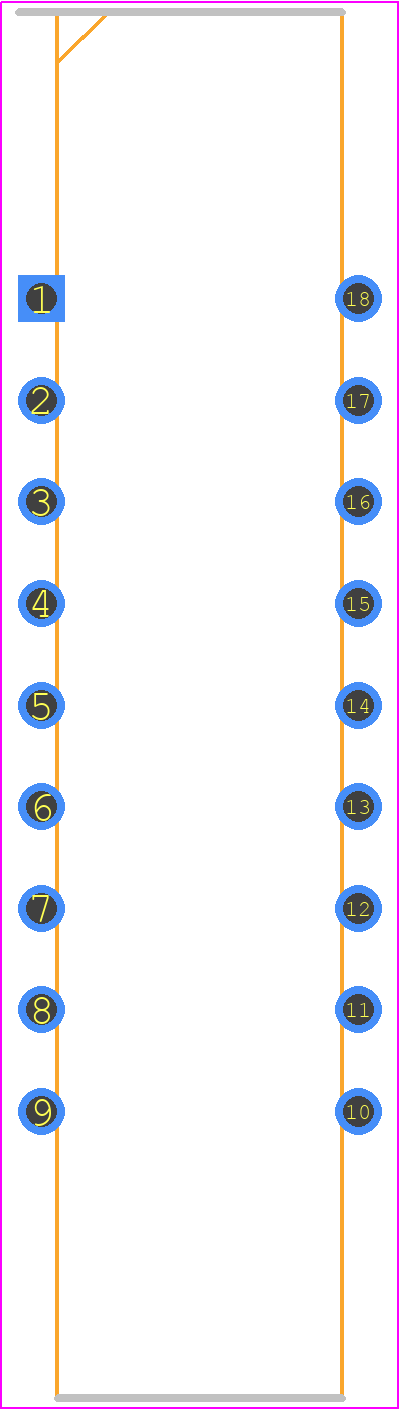

CA3306E - Rochester Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E18.3
click to zoom
3D Models
CA3306E - Rochester Electronics - 3D model - Dual-In-Line Packages - E18.3
click to zoom

CA3306E Details

  • Manufacturer Part Number:

    CA3306E

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-18

  • Pin Count:

    18

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Rochester Electronics LLC

  • Analog Input Voltage-Max:

    4.8 V

  • Conversion Time-Max:

    0.067 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    21.91 mm

  • Linearity Error-Max (EL):

    0.7812%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    15 MHz

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

CA3306E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CA3306E is -55°C to +125°C, although it can withstand storage temperatures from -65°C to +150°C.
  • To ensure proper biasing, the CA3306E requires a minimum of 10mA of quiescent current, and the input voltage should be within the recommended range of 5V to 15V. Additionally, the output voltage should be decoupled with a 10uF capacitor to prevent oscillations.
  • The maximum power dissipation of the CA3306E is 1.5W, and it is recommended to use a heat sink to ensure reliable operation, especially in high-temperature environments.
  • While the CA3306E can be used in switching power supply applications, it is not recommended due to its relatively low switching frequency (up to 100kHz) and limited power handling capabilities. A more suitable device, such as a dedicated switching regulator IC, would be a better choice for such applications.
  • To troubleshoot common issues with the CA3306E, check the input voltage, output voltage, and quiescent current to ensure they are within the recommended ranges. Also, verify that the output is properly decoupled and that the device is not overheating. If issues persist, consult the datasheet or contact Rochester Electronics LLC for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CA3306E Overview

Use the download button to access the CA3306E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA330, or try a keyword search, such as Analog to Digital Converters
