CA56-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment Clock 4 Character Common Anode 1.95V 20mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 36-DIP (0.600", 15.24mm)

Download CA56-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

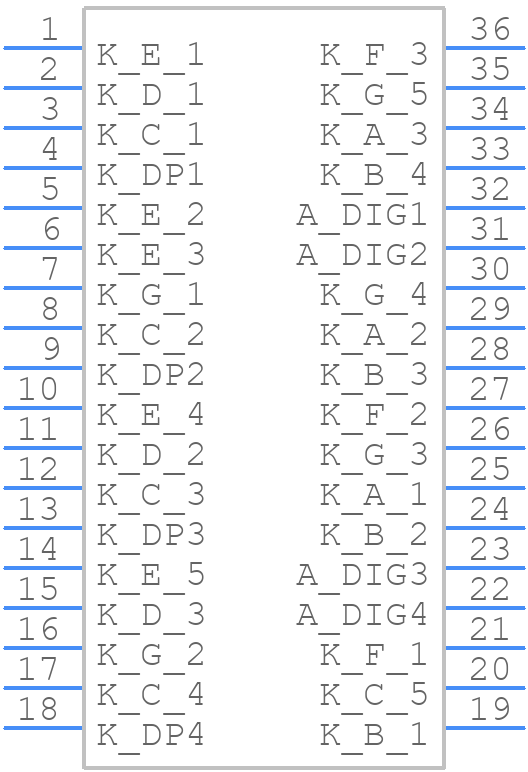

CA56-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

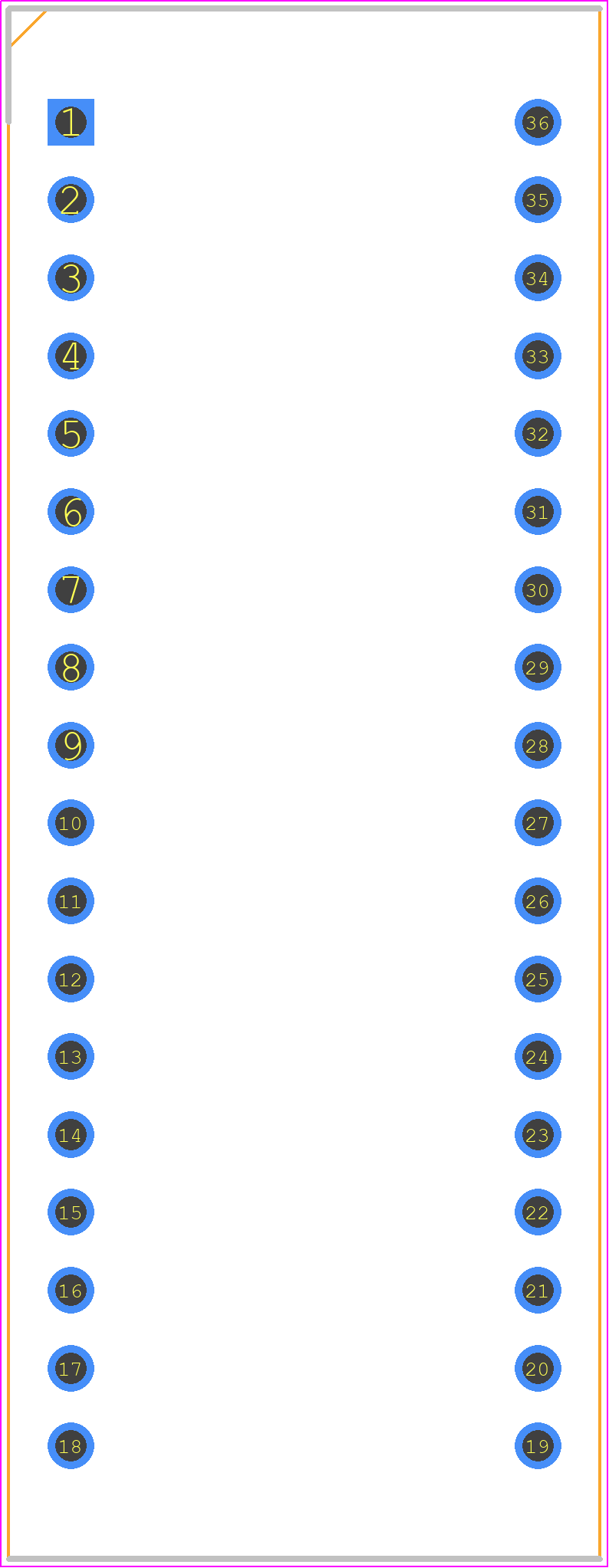

CA56-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - X9396WR-04-46SN
click to zoom
3D Models
CA56-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - X9396WR-04-46SN
click to zoom

CA56-11SURKWA Details

  • Manufacturer Part Number:

    CA56-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-36

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

CA56-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the LED.
  • While the CA56-11SURKWA is suitable for indoor use, it's not recommended for outdoor applications due to its limited environmental rating (IEC 60068-2-14:2009, Test Nb: Tb). For outdoor use, consider using LEDs with higher environmental ratings, such as IP67 or higher.
  • The maximum allowable voltage for the CA56-11SURKWA is 3.5V. Exceeding this voltage may damage the LED or reduce its lifespan. Ensure that the voltage supply is within the recommended range to ensure reliable operation.
  • The CA56-11SURKWA has a maximum operating temperature of 85°C (185°F). While it can tolerate high temperatures, prolonged exposure above 80°C (176°F) may affect its performance and lifespan. Consider using LEDs with higher temperature ratings for high-temperature applications.
  • The typical lifespan of the CA56-11SURKWA is around 50,000 hours, depending on operating conditions, such as temperature, voltage, and current. Proper usage and maintenance can help extend its lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CA56-11SURKWA Overview

Use the download button to access the CA56-11SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA56-, or try a keyword search, such as LED Displays
