CA56-12GWA - Kingbright

Description: LED Displays & Accessories .56"4DIGT GRN LED DISPLAY

Download CA56-12GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

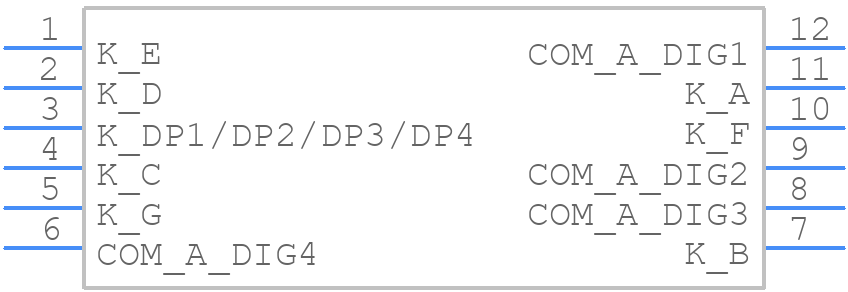

CA56-12GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints
CA56-12GWA - Kingbright PCB footprint - Other - Other - DIP-12
click to zoom
3D Models
CA56-12GWA - Kingbright - 3D model - Other - DIP-12
click to zoom

CA56-12GWA Details

  • Manufacturer Part Number:

    CA56-12GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

CA56-12GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CA56-12GWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, CA56-12GWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for CA56-12GWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, CA56-12GWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to prevent damage to the LED.
  • The viewing angle of CA56-12GWA is 120°, which means the LED maintains its brightness and color consistency within a 120° angle from the center of the LED.
