CA56-12SRWA - Kingbright

Description: LED Displays & Accessories .56" RED LED DISPLAY 4 DIGIT

Download CA56-12SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

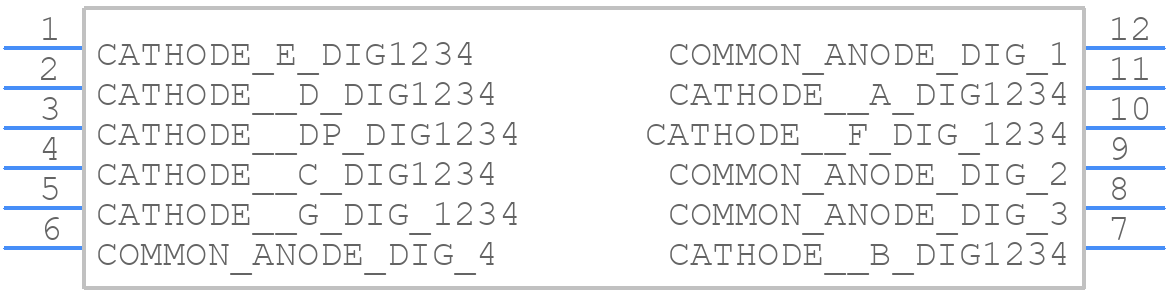

Symbol
CA56-12SRWA - Kingbright - PCB symbol
click to zoom

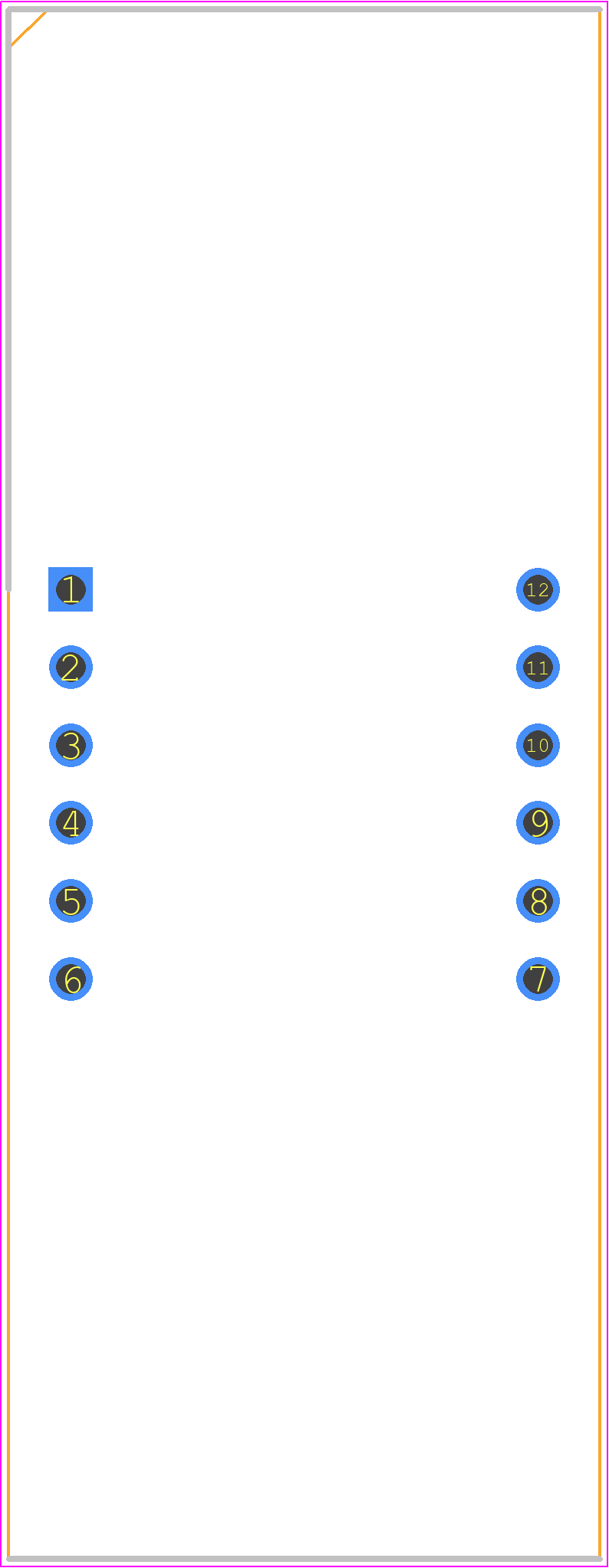

PCB Footprints
CA56-12SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - CA56-12SRWA
click to zoom

CA56-12SRWA Details

  • Manufacturer Part Number:

    CA56-12SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    700 nm

CA56-12SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CA56-12SRWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, CA56-12SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for CA56-12SRWA is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
  • Yes, CA56-12SRWA is compatible with lead-free soldering processes, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle for CA56-12SRWA is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CA56-12SRWA Overview

Use the download button to access the CA56-12SRWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CA56-, or try a keyword search, such as LED Displays
