CA56-12SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Cathode 1.85V 10mA 0.748" H x 1.980" W x 0.329" D (19.00mm x 50.30mm x 8.35mm) 12-DIP (0.600", 15.24mm)

Download CA56-12SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

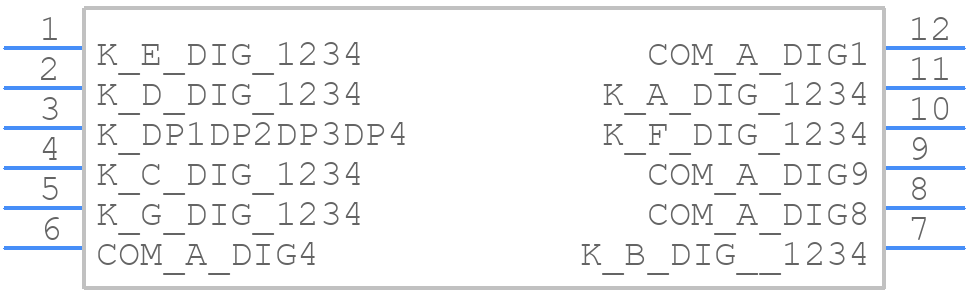

CA56-12SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

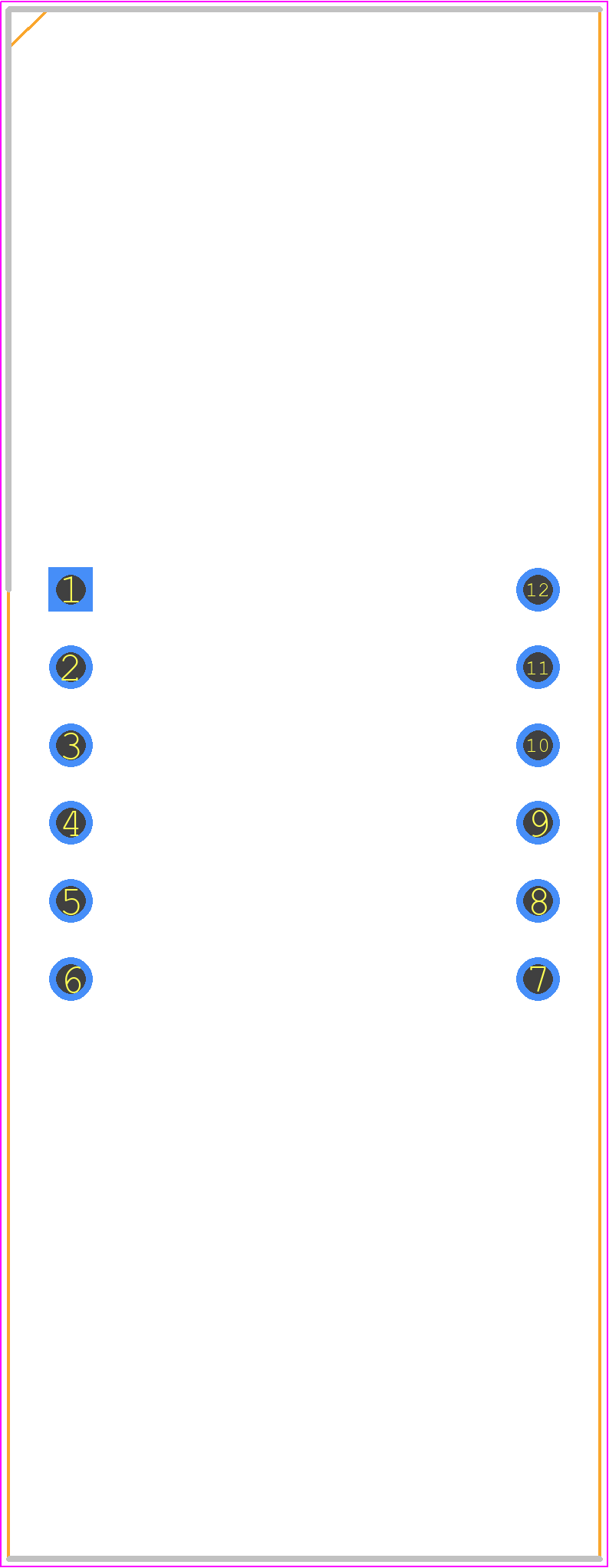

CA56-12SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-DIP
click to zoom

CA56-12SURKWA Details

  • Manufacturer Part Number:

    CA56-12SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

CA56-12SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CA56-12SURKWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, CA56-12SURKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for CA56-12SURKWA is 260°C for 3 seconds, with a peak temperature of 240°C. Exceeding this temperature may damage the component.
  • Yes, CA56-12SURKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to ensure reliable connections.
  • The typical lifespan of CA56-12SURKWA is around 50,000 hours, depending on operating conditions, such as temperature, humidity, and current. Proper usage and maintenance can help extend its lifespan.
