CA56-21EWA - Kingbright

Description: Displays Panel 4DIGIT 34LED Hi-Eff. Red CA 12-Pin DIP Module Tube

Download CA56-21EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

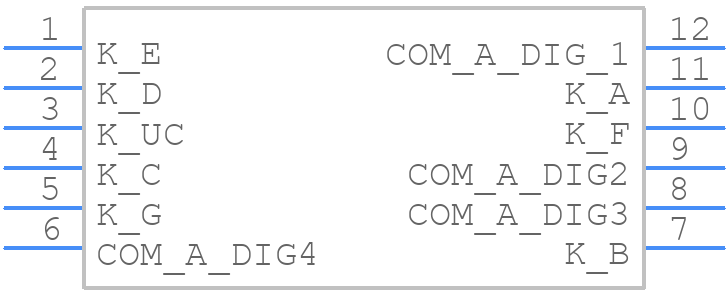

CA56-21EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

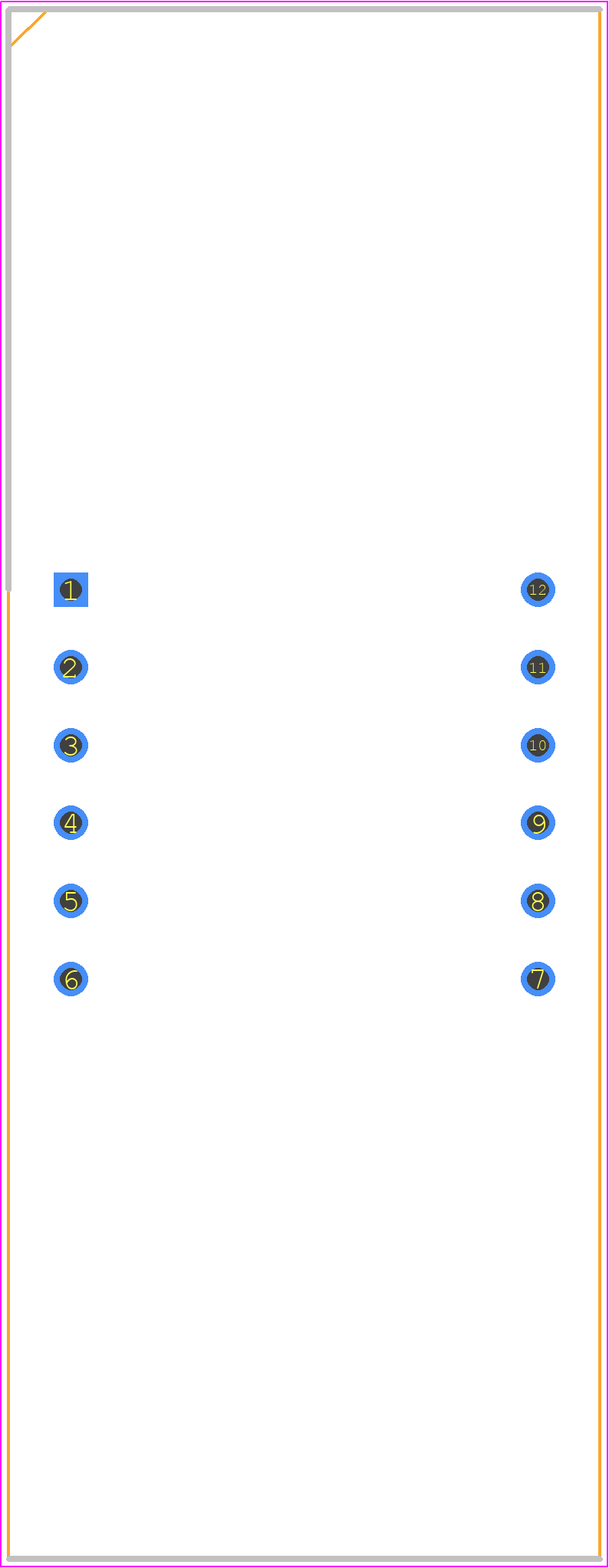

CA56-21EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - CA56-21EWA
click to zoom

CA56-21EWA Details

  • Manufacturer Part Number:

    CA56-21EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

CA56-21EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for CA56-21EWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, CA56-21EWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, dust, and UV radiation.
  • The maximum allowable voltage for CA56-21EWA is 3.5V, exceeding which may damage the LED or reduce its lifespan.
  • During soldering, it's recommended to use a soldering iron with a temperature of 260°C or less, and to avoid applying excessive force or pressure to the LED. Also, ensure the soldering time is within 3 seconds to prevent thermal damage.
  • Yes, CA56-21EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles to ensure reliable assembly.
