A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern is recommended to ensure good heat dissipation.
Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The CAT1161WI-30-GT3 has built-in ESD protection, but it is still recommended to follow standard ESD handling procedures to prevent damage. A minimum of 2kV HBM and 100V MM protection is recommended.
Yes, the CAT1161WI-30-GT3 is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow onsemi's recommended design and manufacturing guidelines to ensure the highest level of reliability.
The recommended soldering conditions are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It is also recommended to use a solder with a melting point of 217°C or higher.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CAT1161WI-30-GT3 Overview

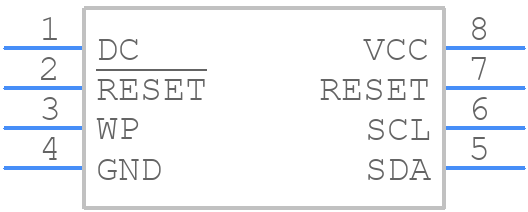

Use the download button to access the CAT1161WI-30-GT3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CAT11,
or try a keyword search, such as Power Management Circuits
