Technical Content
Part Image

CB3LV-3C-25M0000 - CTS

Description: Oscillator XO 25MHz ±50ppm 50pF HCMOS/TTL 55% 3.3V 4-Pin SMD T/R

Download CB3LV-3C-25M0000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

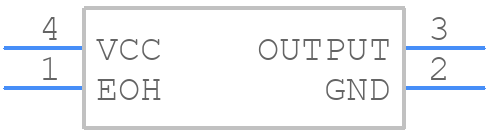

Symbol
CB3LV-3C-25M0000 - CTS - PCB symbol
click to zoom

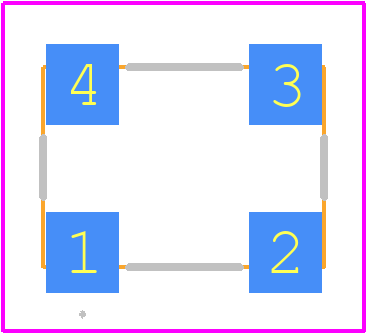

PCB Footprints
CB3LV-3C-25M0000 - CTS PCB footprint - Other - Other - 7.00mm x 5.00mm x 1.80mm
click to zoom
3D Models
CB3LV-3C-25M0000 - CTS - 3D model - Other - 7.00mm x 5.00mm x 1.80mm
click to zoom

CB3LV-3C-25M0000 Details

  • Manufacturer Part Number:

    CB3LV-3C-25M0000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN PACKAGE-4

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    South Korea, Taiwan

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6.05

  • Additional Feature:

    OUTPUT ENABLE FUNCTION

  • Fall Time-Max:

    5 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    160 MHz

  • Operating Frequency-Min:

    1.5 MHz

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Oscillator Type:

    HCMOS/TTL

  • Output Load:

    50 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    DILCC4,.2,200

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    5 ns

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    GOLD OVER NICKEL

CB3LV-3C-25M0000 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CB3LV-3C-25M0000 is -40°C to +85°C.
  • To ensure frequency stability, it's essential to follow proper PCB design and layout guidelines, minimize noise and EMI, and consider using a crystal oscillator with a built-in PLL or a voltage-controlled oscillator (VCO) for better frequency stability.
  • The typical power consumption of the CB3LV-3C-25M0000 is around 20-30 mA, depending on the specific application and operating conditions.
  • Yes, the CB3LV-3C-25M0000 is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation.
  • To troubleshoot frequency output issues, check the oscillator's power supply, ensure proper PCB design and layout, and verify that the oscillator is properly soldered and mounted. If issues persist, consult the datasheet or contact CTS Corporation's technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CB3LV-3C-25M0000 Overview

Use the download button to access the CB3LV-3C-25M0000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CB3LV, or try a keyword search, such as XO
