CB3LV-3C-50M0000 - CTS

Description: Oscillator XO 50MHz ±50ppm 50pF HCMOS/TTL 55% 3.3V 4-Pin SMD T/R

Download CB3LV-3C-50M0000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

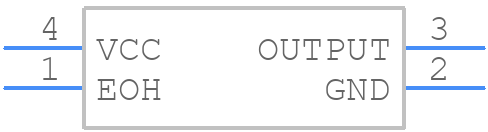

CB3LV-3C-50M0000 - CTS - PCB symbol
click to zoom
PCB Footprints

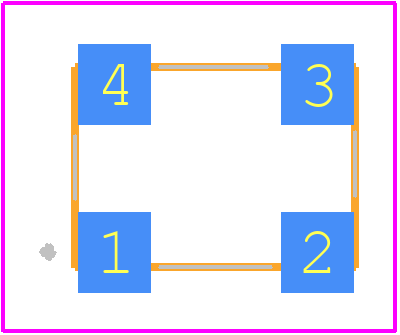

CB3LV-3C-50M0000 - CTS PCB footprint - Other - Other - CB3LV-3C-50M0000-1
click to zoom
3D Models
CB3LV-3C-50M0000 - CTS - 3D model - Other - CB3LV-3C-50M0000-1
click to zoom

CB3LV-3C-50M0000 Details

  • Manufacturer Part Number:

    CB3LV-3C-50M0000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, CERAMIC PACKAGE-4

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    South Korea, Taiwan

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6.12

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; TAPE AND REEL

  • Fall Time-Max:

    5 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    107 MHz

  • Operating Frequency-Min:

    1.5 MHz

  • Operating Frequency-Nom:

    50 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Oscillator Type:

    HCMOS/TTL

  • Output Load:

    50 pF

  • Output Low Current-Max:

    16 mA

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    DILCC4,.2,200

  • Physical Dimension:

    7.0mm x 5.0mm x 1.7mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    5 ns

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    GOLD OVER NICKEL

CB3LV-3C-50M0000 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CB3LV-3C-50M0000 is -40°C to 125°C.
  • To ensure reliability in high-vibration environments, it is recommended to follow proper mounting and soldering techniques, and to consider using additional mechanical support or potting compounds to secure the device.
  • The maximum allowable current for the CB3LV-3C-50M0000 is 50mA, as specified in the datasheet.
  • Yes, the CB3LV-3C-50M0000 is suitable for high-frequency applications up to 50MHz, but it's recommended to consult the datasheet and application notes for specific guidance on frequency response and impedance matching.
  • To troubleshoot issues with the CB3LV-3C-50M0000, start by verifying the device is properly soldered and mounted, then check for signs of physical damage or contamination. If issues persist, consult the datasheet and application notes, or contact CTS Corporation's technical support for further assistance.
