CBTV24DD12ETY - NXP

Description: NXP - CBTV24DD12ETY - ANALOGUE MUX/DEMUX, 12CKT, 2:1, TFBGA

Download CBTV24DD12ETY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

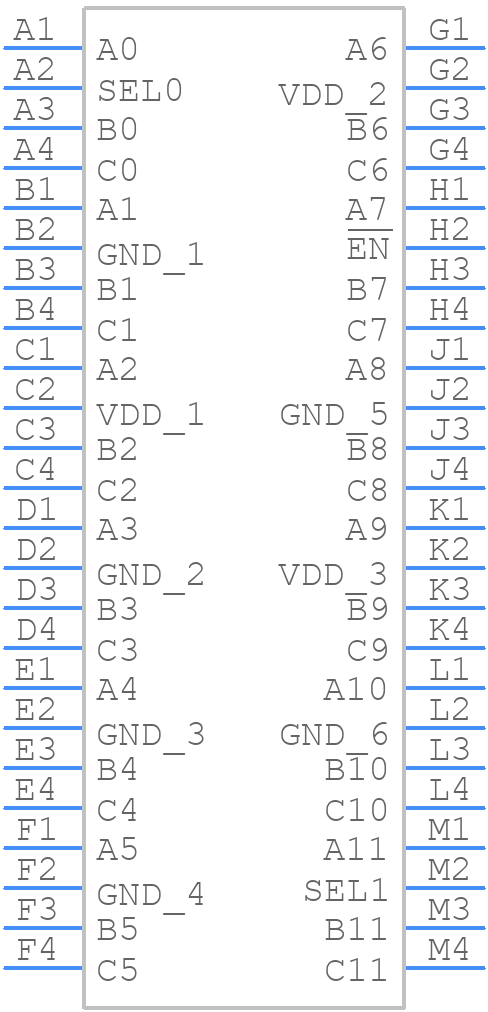

CBTV24DD12ETY - NXP - PCB symbol
click to zoom
PCB Footprints
CBTV24DD12ETY - NXP PCB footprint - BGA - BGA - TFBGA48 (SOT1365-1)
click to zoom
3D Models
CBTV24DD12ETY - NXP - 3D model - BGA - TFBGA48 (SOT1365-1)
click to zoom

CBTV24DD12ETY Details

  • Manufacturer Part Number:

    CBTV24DD12ETY

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    3 X 8 MM,1 MM HEIGHT, 0.65 MM PITCH, GREEN, PLASTIC, SOT1365-1, TFBGA-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT1365-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PBGA-B48

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

CBTV24DD12ETY Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a 1.5 mm via diameter for optimal thermal performance.
  • Implement a thermal management system, such as a heat sink or fan, to maintain a junction temperature below 150°C. Also, ensure a stable power supply and minimize power dissipation.
  • Use 100 nF to 1 μF decoupling capacitors with a voltage rating of 10 V or higher. Place them as close as possible to the device's power pins, with a maximum distance of 5 mm.
  • Implement ESD protection using TVS diodes or ESD protection arrays at the input and output pins. Ensure a minimum of 2 kV HBM and 100 V MM protection.
  • Use a 50 Ω to 75 Ω termination scheme for the input and output pins, depending on the specific application requirements. Ensure proper impedance matching to minimize signal reflections.
