CC04-41SURKWA footprint, schematic symbol and 3D model by Kingbright

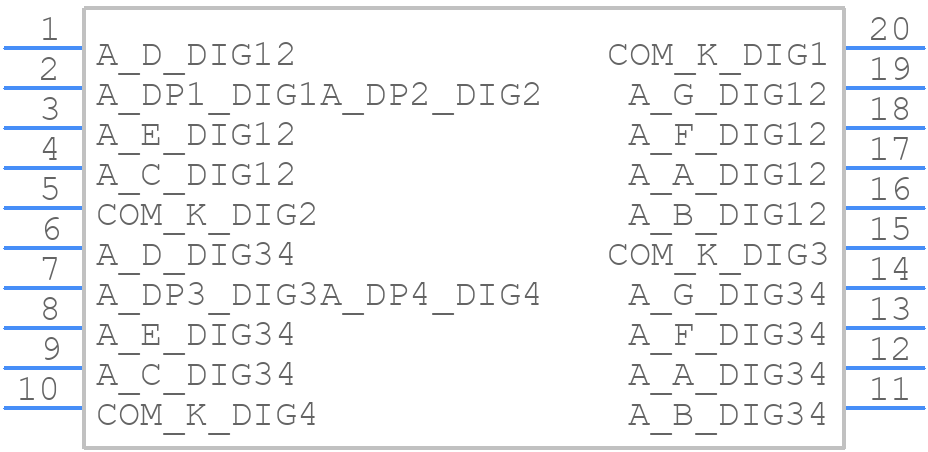

Symbol

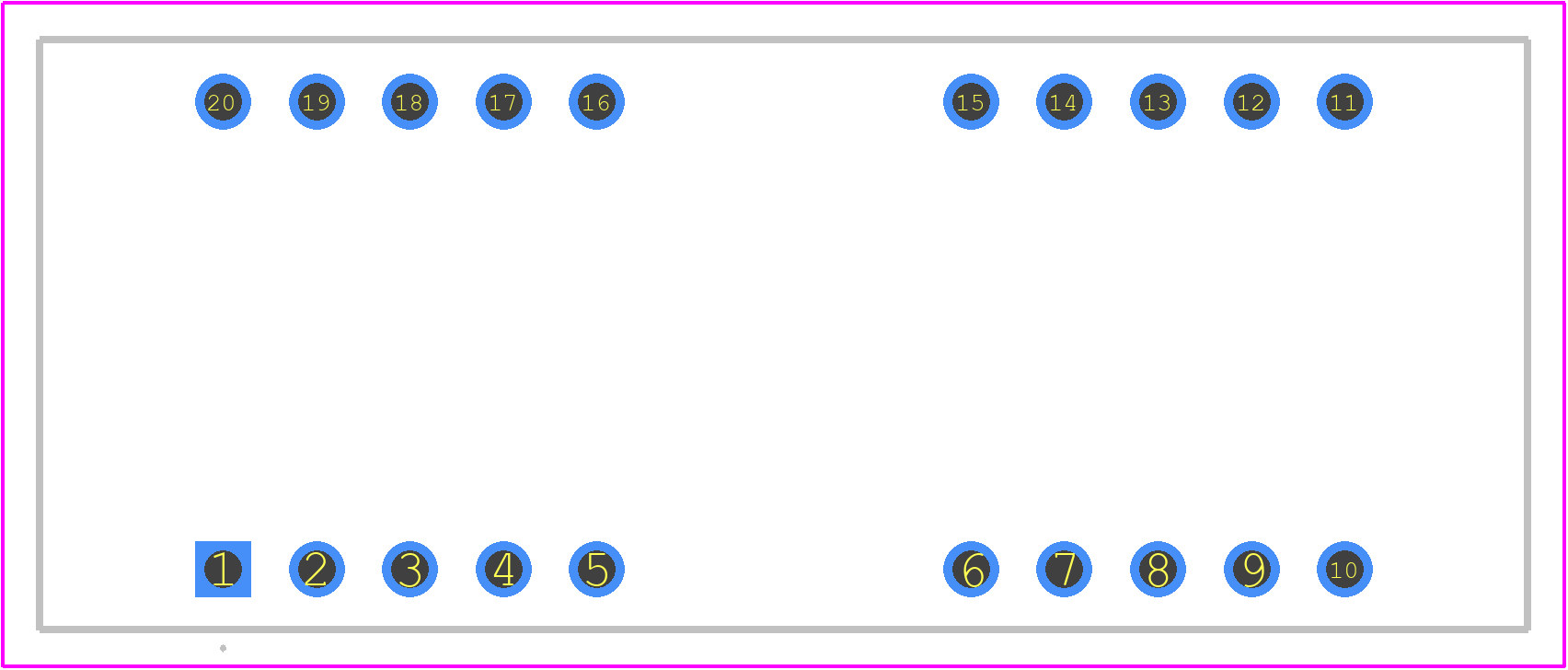

PCB Footprints

CC04-41SURKWA Details

Manufacturer Part Number:
CC04-41SURKWA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-20
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Color:
HYPER RED
Color@Wavelength:
RED
Configuration:
2 BANKS, COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display Height:
10.16 mm
Forward Current-Max:
0.03 A
Number of Functions:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY

The recommended storage temperature for CC04-41SURKWA is -20°C to 60°C, with a relative humidity of 60% or less.
Yes, CC04-41SURKWA is suitable for outdoor applications due to its high brightness and weather-resistant epoxy resin. However, it's essential to follow proper installation and sealing guidelines to ensure reliability.
The typical forward voltage drop for CC04-41SURKWA is around 2.0-2.5V at a forward current of 20mA.
Yes, CC04-41SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
Kingbright recommends derating the CC04-41SURKWA by 2.5mA/°C above 25°C to ensure reliable operation and prevent overheating.

Community Provided

System Verified

Community Approved

Use the download button to access the CC04-41SURKWA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CC04-, or try a keyword search, such as LED Displays
