Texas Instruments provides a recommended PCB layout in the CC1101 datasheet, which includes guidelines for component placement, routing, and grounding. It's essential to follow these guidelines to ensure optimal performance, especially for the RF section.
The CC1101TRHBRG4Q1 is a highly configurable device, and frequency band selection is done through the configuration registers. The device supports multiple frequency bands, including 315 MHz, 433 MHz, 868 MHz, and 915 MHz. The specific configuration depends on the desired frequency band and the application requirements.
The maximum transmission power of CC1101TRHBRG4Q1 is +10 dBm (10 mW). However, the actual transmission power can be adjusted through the configuration registers to comply with regional regulations and application requirements.
The CC1101TRHBRG4Q1 supports FHSS, which can be implemented using the device's built-in frequency synthesizer and the configuration registers. The specific implementation details depend on the desired frequency hopping pattern and the application requirements.
The sensitivity of the CC1101TRHBRG4Q1 receiver is typically around -110 dBm to -115 dBm, depending on the frequency band and the modulation scheme used. This means that the device can detect signals as weak as -110 dBm to -115 dBm.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CC1101TRHBRG4Q1 Overview

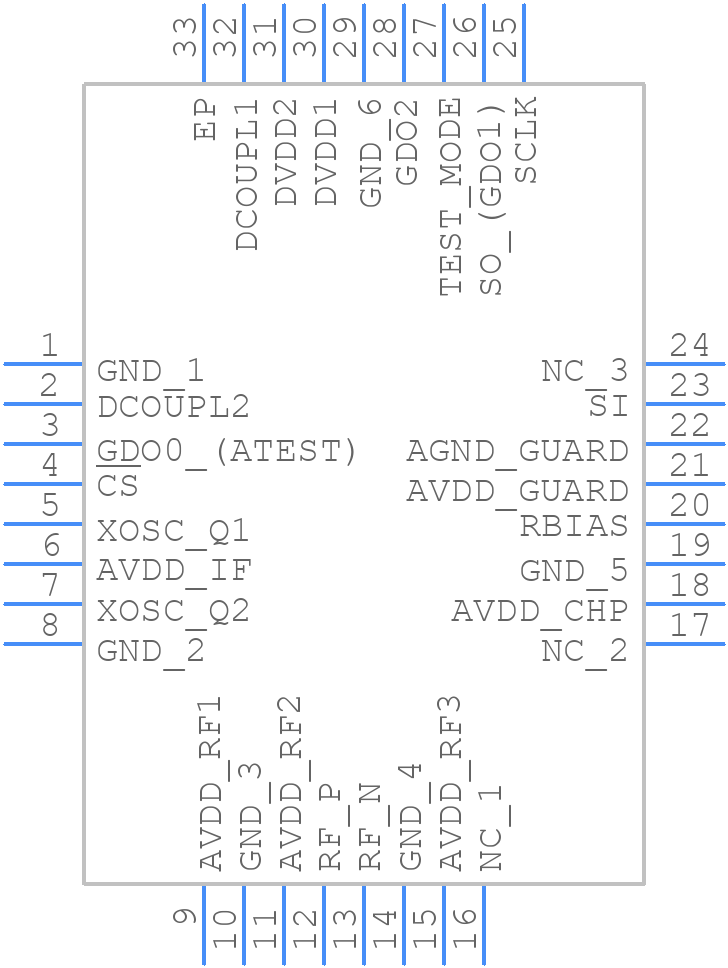

Use the download button to access the CC1101TRHBRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC110,
or try a keyword search, such as Cellular Telephone Circuits
