CC1110F8RSP - Texas Instruments

Description: CC1110F8RSP, System-On-Chip Microcontroller CMOS for RF Transceiver, USB Controller, 2 to 3.6V 36-Pin QFN EP

Download CC1110F8RSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

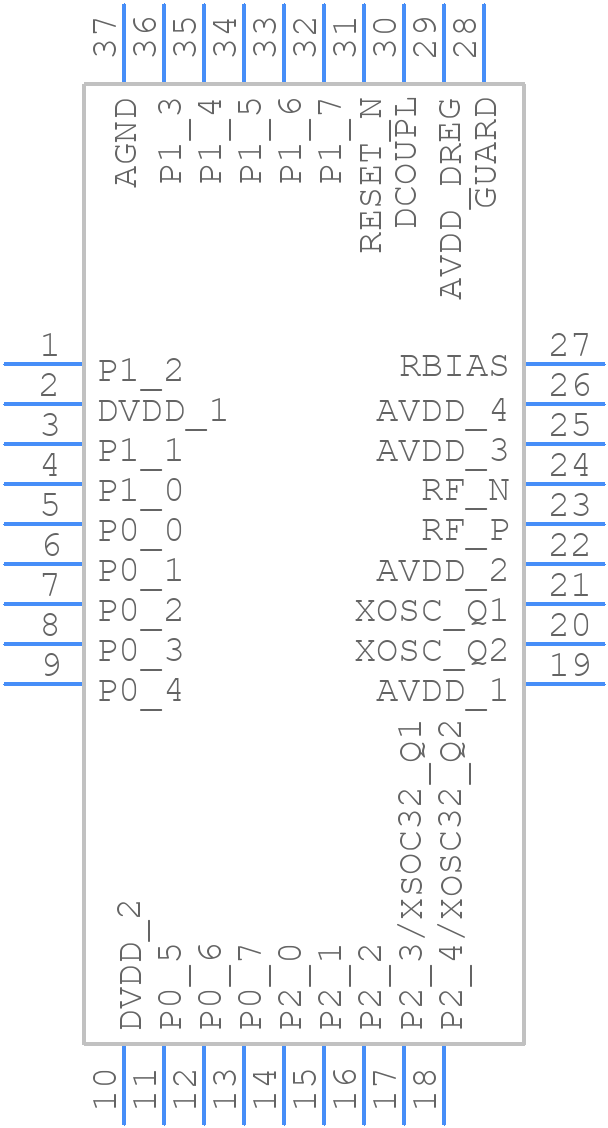

CC1110F8RSP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1110F8RSP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN
click to zoom
3D Models
CC1110F8RSP - Texas Instruments - 3D model - Quad Flat No-Lead - QFN
click to zoom

CC1110F8RSP Details

  • Manufacturer Part Number:

    CC1110F8RSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-36

  • Pin Count:

    36

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N36

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CC1110F8RSP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CC1110F8RSP is 2.0 V to 3.6 V, with a typical voltage of 3.0 V.
  • To configure the CC1110F8RSP for optimal RF performance, ensure that the PCB layout follows the recommended design guidelines, use a 50-ohm impedance matching network, and optimize the transmission power and data rate for your specific application.
  • The maximum transmission power of the CC1110F8RSP is +10 dBm (10 mW), but this can be adjusted using the PA_TABLE register to optimize power consumption and range.
  • To implement frequency hopping with the CC1110F8RSP, use the FHSS (Frequency Hopping Spread Spectrum) mode, which allows you to hop between 79 channels in the 2.4 GHz band. You can configure the hopping sequence and dwell time using the FHSS registers.
  • The maximum data rate supported by the CC1110F8RSP is 500 kbps, but this can be adjusted using the MDMSCTRL register to optimize data rate and power consumption for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1110F8RSP Overview

Use the download button to access the CC1110F8RSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC111, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
