CC1111F32RSP - Texas Instruments

Description: CC1111F32RSP, System-On-Chip Microcontroller CMOS for RF Transceiver, USB Controller, 3 to 3.6V 36-Pin QFN EP

Download CC1111F32RSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

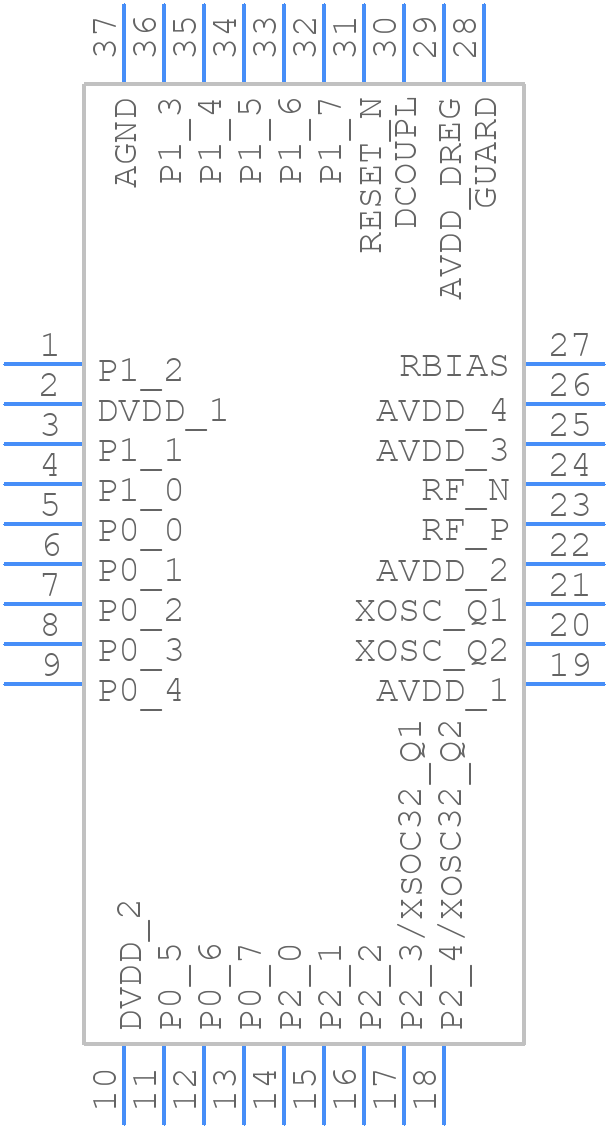

CC1111F32RSP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1111F32RSP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN36 PIN
click to zoom
3D Models
CC1111F32RSP - Texas Instruments - 3D model - Quad Flat No-Lead - QFN36 PIN
click to zoom

CC1111F32RSP Details

  • Manufacturer Part Number:

    CC1111F32RSP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    36

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

CC1111F32RSP Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CC1111F32RSP is 26 MHz. This frequency is used as the clock source for the microcontroller and the radio frequency (RF) transceiver.
  • To configure the CC1111F32RSP for optimal RF performance, ensure that the PCB layout is optimized for RF, use a 50-ohm impedance matching network, and adjust the transmitter power and modulation settings according to the application requirements.
  • The maximum transmission power of the CC1111F32RSP is +10 dBm (10 mW). However, the actual transmission power can be adjusted using the transmitter power control register.
  • To implement FHSS with the CC1111F32RSP, use the device's built-in frequency synthesizer and configure the frequency hopping sequence using the device's registers. The CC1111F32RSP supports up to 16 frequency channels.
  • The maximum data rate supported by the CC1111F32RSP is 500 kbps. However, the actual data rate can be adjusted depending on the application requirements and the modulation scheme used.
