Texas Instruments provides a recommended PCB layout in the CC1125RHBR datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
Optimizing the CC1125RHBR's performance requires careful consideration of factors such as frequency selection, modulation scheme, data rate, and transmission power. Consult the datasheet and application notes for guidance, and consider using TI's SmartRF Studio software to simulate and optimize your design.
When selecting an antenna for the CC1125RHBR, consider factors such as frequency, impedance, and radiation pattern. The antenna should be matched to the CC1125RHBR's output impedance, and its radiation pattern should be suitable for your application. Consult the datasheet and application notes for more information.
To ensure reliable data transmission with the CC1125RHBR, implement error correction mechanisms such as forward error correction (FEC) and cyclic redundancy checks (CRCs). Additionally, consider using techniques such as frequency hopping and spread spectrum to mitigate interference.
The CC1125RHBR's power consumption depends on factors such as transmission power, data rate, and operating mode. To minimize power consumption and maximize battery life, consider using low-power modes, optimizing transmission power, and implementing power-saving techniques such as duty cycling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC1125RHBR Overview

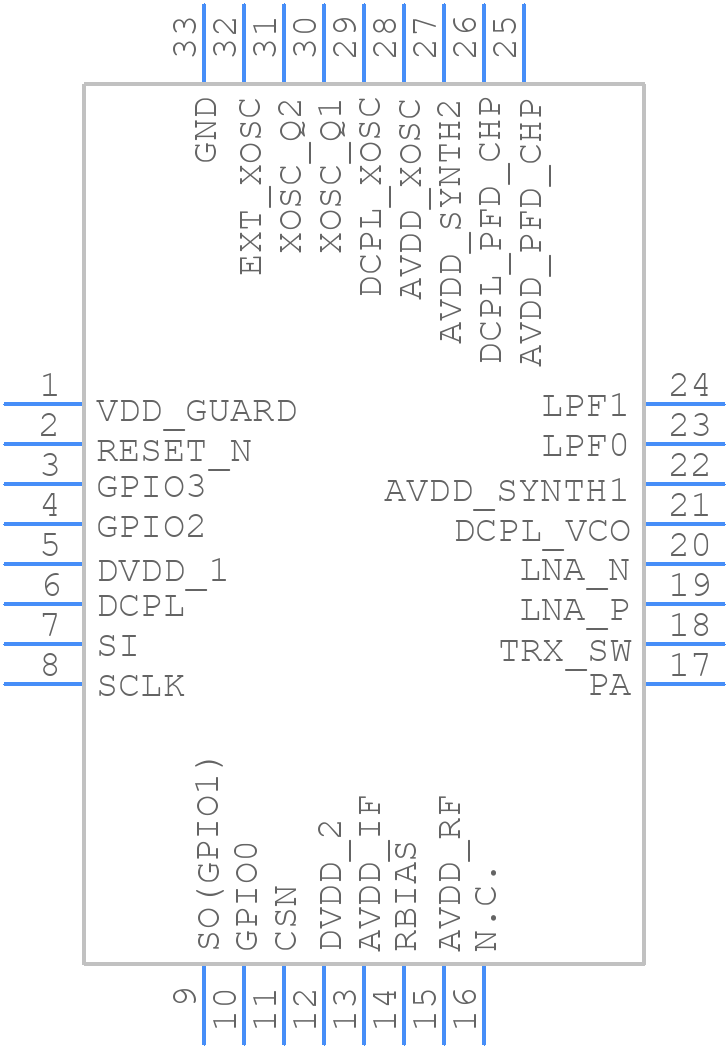

Use the download button to access the CC1125RHBR schematic symbol, PCB footprint, and 3D model.
