Texas Instruments provides a recommended PCB layout in the CC1131TRHBRG4Q1 datasheet, but it's also recommended to follow the guidelines in the 'CC11xx and CC25xx PCB Layout Guidelines' application note (SWRA419) for optimal performance.
To configure the CC1131TRHBRG4Q1 for optimal power consumption, refer to the 'CC1131 Power Consumption' section in the datasheet and follow the guidelines for selecting the optimal frequency, data rate, and transmission power. Additionally, consider using the device's built-in power-saving features, such as the 'Low Power Mode' and 'Wake-on-Radio' features.
The maximum transmission distance of the CC1131TRHBRG4Q1 depends on various factors, including the transmission power, frequency, and environment. According to the datasheet, the device can achieve a transmission distance of up to 10 km (6.2 miles) in ideal conditions. However, in practice, the actual transmission distance may be shorter due to obstacles, interference, and other factors.
To ensure reliable data transmission with the CC1131TRHBRG4Q1, follow the guidelines in the datasheet for selecting the optimal modulation scheme, data rate, and transmission power. Additionally, consider implementing error correction mechanisms, such as CRC and retransmission, and using the device's built-in features, such as the 'Packet Handling' and 'Error Detection' features.
Yes, the CC1131TRHBRG4Q1 can be used with other microcontrollers besides the MSP430. The device is designed to be compatible with a wide range of microcontrollers, and Texas Instruments provides software development kits (SDKs) and example code for various microcontrollers, including the ARM Cortex-M series and the AVR series.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CC1131TRHBRG4Q1 Overview

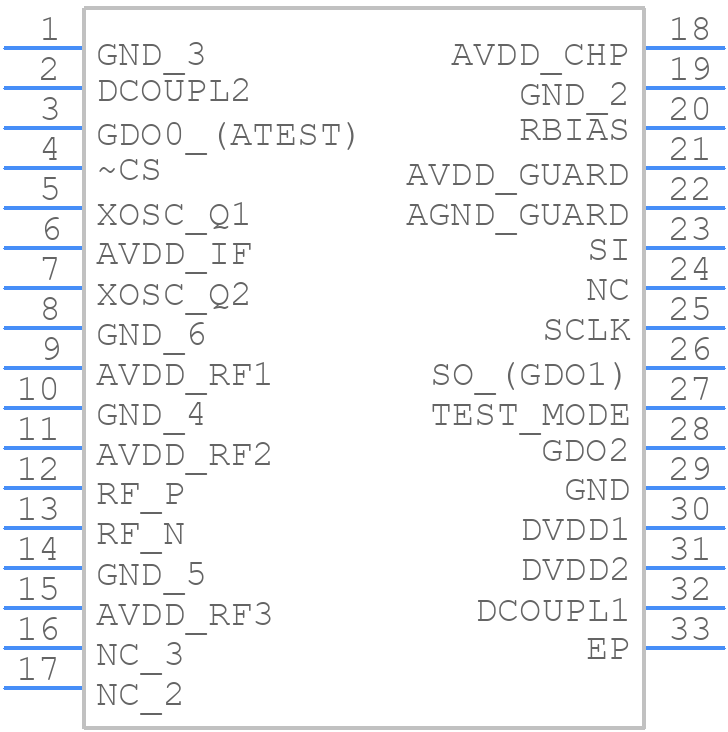

Use the download button to access the CC1131TRHBRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC113,
or try a keyword search, such as Cellular Telephone Circuits
